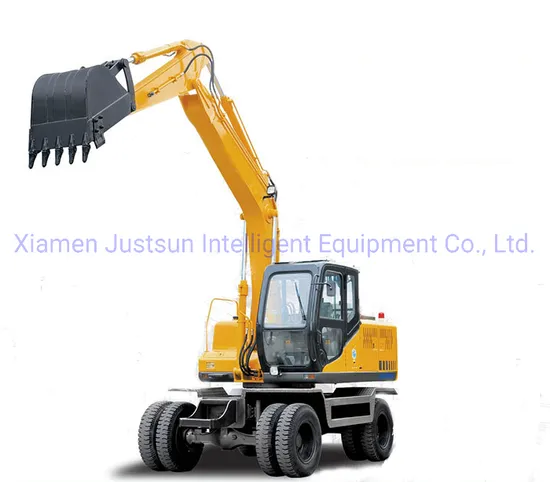

Wheel Excavator with 0.40m ³ -0.50 M ³

Product Description

The wheel excavator is a kind of common excavator. Compared with tracked excavators, it has the characteristics of mobility and flexibility. It is a good hand for urban construction and is a construction-type machine with walking tires. The rim-type excavator is suitable for high-speed long-distance self-transition, the general speed can reach 30-35KMH. Flexible features can quickly replace a variety of operating devices, does not damage the characteristics of the road, suitable for hard road construction. Wheel excavators are used in urban tap water, municipal utilities, pipeline maintenance engineering, civil engineering, industrial material handling, excavation tunnels, water conservancy projects, urban demolition and so on.
130S Wheel Excavator Features:
Full hydraulic automatic walking, convenient and easy to operate
The boom is supported by double cylinders, and the body is stable during operation and the movement is stable
, Powered by high-quality engine with internal brand to ensure low fuel consumption, strong power and high reliability
South Korea imported multi-way valve, advanced and reliable hydraulic system
, imported Korean rotary motor, easy to rotate freely
.Using a plunger pump, high flow, high pressure, smooth and powerful operation
The entire car body uses high quality steel, firm and reliable, more durable
The pipeline of the breaker has been installed and the supporting controls. Replace the breaker and use it immediately.
.Air-conditioned luxury cab, spacious, comfortable seats, soundproofing
Performance parameter:
Range of operation
Boom length: 4200mm
Arm length: 2000mm
Maximum Digging Reach: 7200mm
Maximum Digging Depth: 4500mm
Maximum Digging Force: 90KN
Maximum Digging Height: 7500mm
Maximum Dumoing Height:5400mm
Back end radius of gyration:2250mm
Dimensions
(Length* width *height)travel position: 7200*2500*3000mm
Wheel base:2750mm
Track(Front/rear):1900mm
Ground clearance of counterweight:1260mm
Minimum ground clearance:310mm
Tech performance and specification
Angle of rotation: 360°
Machine weight:12500kg
Engine model:LRM3Z-22/4BTAA3.9
Rated Power:85KW
Rated Speed:2200r/min
Hydraulic system working pressure:26Mpa
Hydranlic system flow:270L/min
Variable piston pump:2*63ml/r
Maximum Hauling force:76.5KN
Maximum Walking speed:25km/h
Gradeability:58%/30°
Tyre model:900.20
Volume of bucket:0.40m ³-0.50 m ³
Fqt Fuel Quantity:>=8L/h
Capacity Of The Fuel Tank:200L
Hydraulic Tank Capacity:200L
Fixture performance parameters
Angle of rotation: 360°
Weight:630KG
Maximum opening: 2000mm
Maximum closed mouth: 250mm
Closed height:1800mm Detailed Photos

---
