Qk1319 Oil Pipe Thread CNC Lathe Machine with Large Big Spindle Bore

US$15,500.00

1-4 Pieces

US$15,400.00

5+ Pieces

Basic Info.

Model NO.

QK1319

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Horizontal Guide Rail

Tool Holder

Single-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Setting Mode

Floor-type

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Slant Bed

High Precision

Product Name

Pipe Thread CNC Lathe

Belong to

CNC Lathe Machine

Transport Package

Plywwod

Specification

QK1319

Trademark

ALLWAY

Origin

China

HS Code

845811

Production Capacity

1000PCS/Year

Product Description

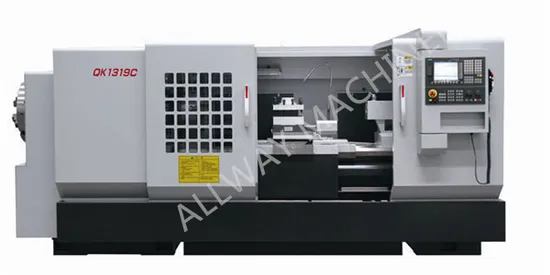

QK1319 Oil PipeThread CNC Lathe Machine with large Big Spindle Bore
Main Feature for CNC Lathe machine QK1319
High rigidity casting be
High precision spindle bearing
Bed guideways industively hardened
Specification

Specification	QK1319
Max.swing over bed	Ф630mm
Max.swing over carriage	Ф340mm
Max. cutting length	1000/1500/300mm
Rail width	550mm
Spindle bore	Ф200mm
Taper of spindle bore	MT6
Chuck size	500mm
Range of spindle speed	(L):25-120rpm(H):100-500rpm
X-axis travel	350mm
Z-axis travel	850/1350/2850mm
X/Z rapid speed	4m/min
Electronic turret	4 -station
Max.section of tool	32x32mm
Stroke of tailstock sleeve	250mm
Diameter/Hole of tailstock sleeve	Ф100mm/MT5
Main motor power	11kw
Overall dimensions L x W x H	2100/2420/2860/3320x1600x1830mm
Packing size L x W x H	2300/2620/3060/3520x1800x2030mm
Net weight	5000/5500/6000kg
Gross weight	6000/6550/7000kg

Machine Accessories of Pipe Thread Cnc Lathe
Standard Accessories of Pipe Thread Cnc Lathe:
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Unitary iron casting machine stand
Manual 3-jaw chuck 2 pcs Optional Accessories of Pipe Thread Cnc Lathe:
GSK218M controller
Simens 808D controller
Simens 808D Advance controller
Fanuc Oi TF controller
6/8-Position electrical tool post
Contact ALLWAY MACHINERY , get more professional information!
