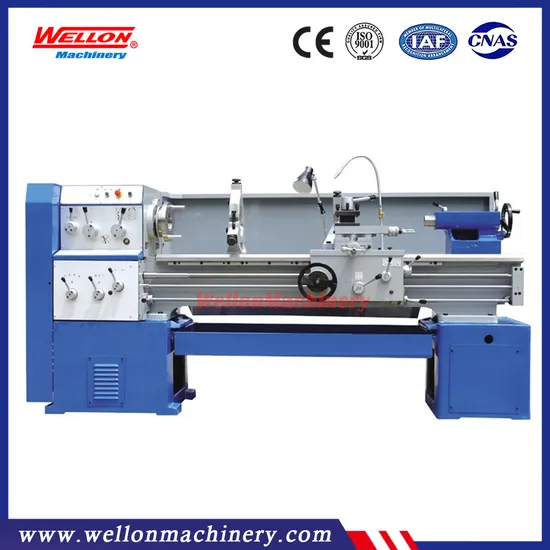

500mm Horizontal Lathe Machines C6250C Turning Lathes with CE Approved

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
Guide ways ultrasonic frequency quenched to ensure a long service life.
Guide ways ground to ensure high accuracy.
Spindle bore 52mm and the spindle nose conforms to ISO-C6.
Gears in head stock precisely ground to reduce noise.
Feeding box well sealed to eliminate leakage.
Kinds of threads.
Tail stock locked by thread or cam lock.
Electric system is reliable and safe.
Electromagnetic brake at users option.
Technical parameter:

Model		C6250C
CAPACITY	Max. swing over bed (mm)	500
	Max. swing over cross slide (mm)	330
	Max. swing in gap (mm)	660
	Center distance	1000/1500mm
	Bed width	360mm
SPINDLE	Spindle hole	52mm
	Spindle nose	C6
	Spindle taper	MT6
	Spindle speeds (Number)	40-1400rpm (9Steps)
FEEDS	Metric threads range(Kinds)	0.25-14mm (20 Kinds)
	Inch threads range (Kinds)	2-40/inch
	Module threads range (Kinds)	0.5-3.55mm(11Kinds)
CARRLAGE	Cross slide travel	222mm
	Compound rest travel	95mm
	Cross-section size of toolshank	20*20mm 2
TAILSTOCK	Taper of tailstock sleeve	MT4
	Dia. of tailstock sleeve	65mm
	Travel of tailstock sleeve	140mm
Main motor power		5.5kw
Packing size (L*W*H) (mm)
Center distance: 750mm		2220*1150*1590mm
1000mm		2470*1150*1590mm
1500mm		2970*1150*1590mm
Net Weight/Gross Weight
Center distance: 750mm		1500/2150
1000mm		1600/2250
1500mm		1750/2400

Standard accessories: 3-Jaw chuck& flange
4-Jaw chuck& flange
Dead centers
reduction sleeve
Drive plate
Face plate
Steady rest
Follow rest
Working light
Foot brake
Coolant system
Oil tray
Change gears set
Level blocks
Maintenance kit
Foundation bolts/nuts
Optional accessories:
Spindle cover
Tool post cover
Live center
Drill chuck
Quick change tool post
Digital readout
Tapper turning attachment
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
