Hsh-E Type 1.5 Ton 5 FT Construction Lever Hoist Lever Block with CE and GS Certification

Product Description

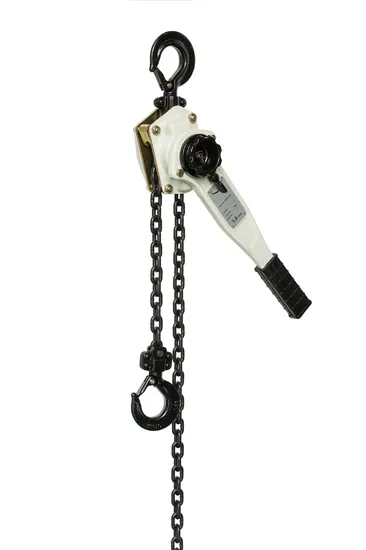

Shuangge Brand HSH-E Type 1.5 Ton Lever Block

Model	Capacity (t)	Standard lift(m)	Running test load	Headroom (mm)	Load chain		Effort required to lift max load(N)	Main Dimensions(mm)					Packing measurements (cm)	Extra weight per meter of extra lift(kg)	Lenghth of leverhandle (mm)	Net weight (kg)
					Columns	Dia+Pitch (mm)		A	B	C	D	E
HSH-E0.5	0.5	1.5	0.75	260	1	5	340	105	78	95	35	28	35.5x9.5x11.5	0.52	300	4
HSH-E0.75	0.75	1.5	1.125	325	1	6	140	148	90	136	35	29	37x13x17	0.8	280	7
HSH-E1	1	1.5	1.5	340	1	6	250	148	90	136	40	34	37x13x17	0.8	280	7.2
HSH-E1.5	1.5	1.5	2.25	380	1	8	220	172	98	160	47	38	51x14x19	1.4	410	11
HSH-E3	3	1.5	4.5	480	1	10	320	200	115	180	54	44	54x19x22	2.2	410	21
HSH-E6	6	1.5	7.5	620	2	10	340	200	115	235	62	52	54x19x22	4.4	410	31
HSH-E9	9	1.5	11.25	700	3	10	360	200	115	340	85	56	55x29x22	6.6	410	47

Self-manufactured superior G 80 load chain,DIN standardDrop-forged and heat treated load hooks with safety latchs and hook holdsDouble pawls brake systemNon-Asbestos brake discsHigh grade sealed roller bearings100% Running load test at 1.5 times of rated capacityThe static load test is 4 times of rated capacityMore than 1500 cycles of fatigue test at 1.5 times of work loadOverload limiter can be adopted at your requestOEM service can be provided
FAQ: 1. Q:Why Choose Wuyi?
A:Wuyi established in 1972,more than 40 years experience in the chain hoist field with professional technical team.
2. Q:Can I have samples to test?
A:Ready samples can be provided to you to check the quality and test.
3. Q:Guarantee
A:One year
4: Q:OEM service
A:Shuangge is our own brand,OEM also can be provided.

---
