Totem Alloy Transmission Herringbone Gear Pinion Shaft for Mining Driving Equipment

Product Description

1.Product Description

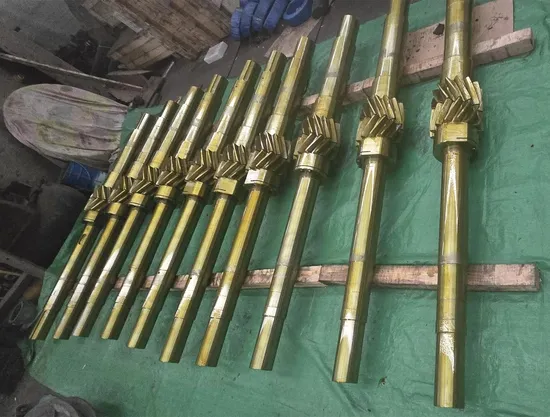

This Helical Gear shaft, Herringbone Gear Shaft, Bevel Gear, Eccentric Shaft mainly used on vessel engine, fan internal gear
2.1. Processing Grinded Double Helical gear shaft
Gear Shaft drawing CHECK, Make Forging Mold, Forging Mold Quality Inspection Check, Machine Processing, Check Size\Hardness\Surface Finish and other technical parameters on drawing.
2.2. Herringbone Gear Shaft Package
Spray anti-rust oil on Herringbone Gear Shaft, Wrap waterproof cloth around Gear Shaft for reducer, Prepare package by shaft shape&weight to choose steel frame, steel support or wooden box etc.
2.3. OEM Customized Grinded double helical gear shaft
We supply OEM SERVICE, customized herringbone gear shaft with big module, more than 1tons big weight, more than 3m length, 42CrMo/35CrMo or your specified required material double helical gear shaft.
Forging---Normalizing&Tempering---Rough machining---Hardening Tempering---Semi-finishing machining---Drilling deep hole---Hobbing---Tooth Surface Quenching---Grinding Shaft diameter---Gear grinding---Inspection---Package---Delivery
2.Product Technical info.

Module	m	Range: 5~70
Gear Teeth Number	z	OEM by drawing's technical parameters
Teeth Height	H	OEM by drawing's technical parameters
Teeth Thickness	S	OEM by drawing's technical parameters
Tooth pitch	P	OEM by drawing's technical parameters
Tooth addendum	Ha	OEM by drawing's technical parameters
Tooth dedendum	Hf	OEM by drawing's technical parameters
Working height	h'	OEM by drawing's technical parameters
Bottom clearance	C	OEM by drawing's technical parameters
Pressure Angle	α	OEM by drawing's technical parameters
Helix Angle,		OEM by drawing's technical parameters
Surface hardness	HRC	Range: HRC 50~HRC63(Quenching)
Hardness:	HB	Range: HB150~HB280; Hardening Tempering/ Hardened Tooth Surface
Surface finish		Range: Ra1.6~Ra3.2
Tooth surface roughness	Ra	Range: ≥0.4
Gear Accuracy Grade		Grade Range: 5-6-7-8-9 (ISO 1328)
Length	L	Range: 0.8m~10m
Weight	Kg	Range: Min. 100kg~Max. 80tons Single Piece
Gear Position		Internal/External Gear
Toothed Portion Shape		Spur Gear/Bevel/Spiral/Helical/Straight
Shaft shape		Herringbone Gear Shaft / Gear Shaft / Eccentric Shaft / Spur Gear / Girth Gear / Gear Wheel
Material	Forging/ Casting	Forging/ Casting 45/42CrMo/40Cr or OEM
Manufacturing Method		Cut Gear
Gear Teeth Milling		√
Gear Teeth Grinding		√
Heat Treatment		Quenching /Carburizing
Sand Blasting		Null
Testing		UT\MT
Trademark		TOTEM/OEM
Application		Gearbox, Reducer, Petroleum,Cement,Mining,Metallurgy etc. Wind driven generator,vertical mill reducer,oil rig helical gear,petroleum slurry pump gear shaft
Transport Package		Export package (wooden box, steel frame etc.)
Origin		China
HS Code		8483409000

Material Comparison List

STEEL CODE GRADES COMPARISON
CHINA/GB	ISO	ГΟСТ	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/ 40XHMA	4340	SNCM439	40NiCrMo6/ 36NiCrMo4
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420
