Artificial Quartz Stone Slab Making Machine for Polished Artificial Quartz Stone Tile Wall Floor

Product Description

Artificial Quartz Stone Slab Making Machine for Polished Artificial Quartz Stone Tile Wall Floor
Main machines:
a. continuous automatic grinding machine.
b. continuous automatic thickness calibrating machine.
c. Vacuum vibration pressing machine
d.Cutting machine
e. Quartz stone slab stacker
f. Plate turnover machine

1. LM series continuous automatic grinding machine.


LM series continous automatic grinding machine is used in process of artificial quartz stone slab. There is 4 / 12 / 16 / 20 heads difference size machine, and there is 1m / 1.7m/ 1.9m most width grinding difference desinged. The max lift range of the machine head is 100mm, which allows 50mm thickness of plate at most. The machine have been optimized and upgraded on based on combining domestic and foreign advanced technology, which enhances its lading position in the field. The machine are characterized by its unique structure of its bearing and guide bearing, automatic lubrication, being controlled and displayed by computer, automated detection and alarms reporting system about the situation of plate and abrasive, excellent performance of water and fog resistance, adjustable speed of oscillation and dransmission and being more convenient and safer to replace grinding head.

Model	Grinding head No.	Plate max width of plate(mm)	Plate max thickness(mm)	Total Kw	Dimension (mm)	Weight(T)
8LM100	8	1000	50	100	7600x2700x2460	9
8LM170	8	1700	50	100	7600x3400x2460	11
8LM1190	8	1900	50	100	7600x3600x2460	12
12LM170	12	1700	50	150	9800x3400x2460	15
12LM190	12	1900	50	150	7600x3600x2460	17
16LM170	16	1700	50	200	12200x3730x2460	19
16LM190	16	1900	50	200	12200x3930x2460	23.5
20LM190	20	1900	50	250	16300x3930x2460	32

2. LX series continuous automatic thickness calibrating machine


LX thickiness calibrating machine is designed for the process fo calibrate thickness before polishing artificial quartz stone. There are three size- 4 ends, 6 ends, 8 ends. It can process three width type quartz stone: 1m, 1.7m, 1.9m. Range of vertical stroke of the cutter is 60mm, the max thickness of precessable artificial quartz stone is 50mm. LX thickness calibrating machine serves an unique structure- main shaft and guide rail. All part self- lubrication, controlled and displayed by computer. Splash, water and fog proof state is well. Osciallation and transmission speed is adjustable.

Model	Grinding head No.	Plate max width of plate(mm)	Plate max thickness(mm)	Total Kw	Dimension (mm)	Weight(T)
4LX100	4	1000	50	70	5000x2800x2240	6
4LX170	4	1700	50	70	5000x3500x2240	7
4LX190	4	1900	50	70	5000x3700x2240	8
6LX100	6	1000	50	100	6200x2800x2240	8
6LX170	6	1700	50	100	6200x3500x2240	10
6LX190	6	1900	50	100	6200x3700x2240	11
8LX190	8	1900	50	130	7400x3700x2240	14

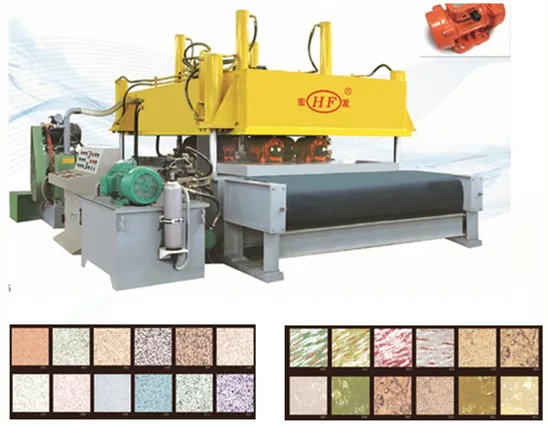

3. LY Vacuum vibration pressing machine


LY series vacuum vibration pressing machine is used to press bulk material into blank plate, which contains machine frame, vacuum box, vibration motor, lifting oil cylinder, pressurized cylinder, transmission parts, vacuum parts, hydraulic electric control etc. Compare with external type compressor, it has advantages such as low power consumption, light weight, low cost etc.. The machine can make max of 60mm plate thickness, three max width spec. 1000mm, 1700mm, 1900mm.

Model	Plate max width of plate(mm)	Plate max length (mm)	Plate max thickness (mm)	Total vibration No.	Dimension (mm)	Weight(T)
LY100X250	1000	2500	50	6	4760x1900x2400	8
LY100X310	1000	3100	50	6	5360x1900x2400	9
LY170X250	1700	2500	50	6	4760x2480x2400	14
LY170X330	1700	3300	50	6	5560x2480x2400	17
LY190X330	1900	3300	50	6	5560x2680x2400	19

4. LQ Cutting machine


LQ series cuting machine is used in vertical and holizontal cutting for the plate of quartz stone. It can make the plate pass continuously on the production line and cut down turnover of the plate. There are 4 blade and 5 blade two types according to the different thickness of plate, the plate can be cut to two part. The biggest plate can be cut into 3 sizes, 2500mm, 3100mm, 3300mm and so on, reliable guide rail and spindle structure make sure the incision straigtness, automatic control operational process, computer show data, the length and width can be adjusted within certain limits.

Model	Plate max thickness of plate(mm)	Plate max length (mm)	Conveyor motor power (Kw)	Dimension (mm)
LQ80X250	800	2500	7.5	4150x2020x2000
LQ80X310	800	3100	7.5	4790x2020x2000
LQ170X330	1700	3300	7.5	5000x2920x2000
LQ190X330	1900	3300	7.5	5000x3120x2000

5.Quartz stone slab stacker





6. LF series plate turnover machine



Made product partern

Following quartz stone slab partern is typical for you reference only. there are hundreds of parttern available, the material proportion data could be provided to your project against the deal come into reality.



FAQ
Shipping port: Qingdao or Fangcheng Port China.
Payment:30% as down deposit by T/T ,70% as the balance paid before loading
Delivery time: 20 days after receipt of deposit and molds confirmation from Buyer.
Guarantee Period: One year after installation finished at buyer's factory.
The above price includes one mold for free, extra molds should be paid according to design.
The video is available to send to you, please contact me.
