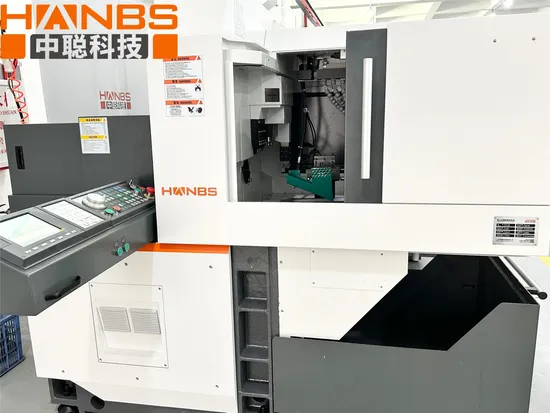

Hanbs Special Single Spindle CNC Lathe for Customers to Choose

US$40,100.00-40,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
HS-320
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Program Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Optional System
Fanuc
Spindle
Single Spindle
Transport Package
Wood
Specification
2250X1200X1850mm
Trademark
HANBS
Origin
China
Production Capacity
40sets/Month

Product Description


Project
Processing references Maximum machining Φ20mm
Maximum machining length 190mm
Maximum axial bore diameter Φ10mm
Maximum axial work wire size M8
Maximum spindle speed 10000rpm
Radial maximum bore diameter Φ7mm
Radial maximum bore tapping size M6
Radial power head maximum rotation speed ER11:10000/ER16:8000
Rated speed of radial power head ER11:8000/ER16:6000
Maximum workpiece removal length 100mm

Tool dimension		 Number of knives installed 6
Tool (turning tool) 12X12
sleeve Φ25.0 X 4
Clip head guide sleeve Spindle spring collet TSUGAMI B0205CCR
Power head collet ER11,ER16
Guide bushing TSUGAMI BS-20#-B
Feeding speed Z1/Y-axis feed velocity 30m/min
X1 20m/min
Electric motor Spindle drive power 2.5/3.7KW
Power head drive power 1KW
For cutting fluid 0.4KW
Cooling of spindle 0.075KW
Lubricating oil 0.01KW
Others Spindle center height 1060mm
Barometric flow 0.7mpa 0.5m³/min
Main circuit breaker capacity 40A
Input power 9.3KW
Weight 2.6T
Overall dimensions 2250X1200X1850mm
