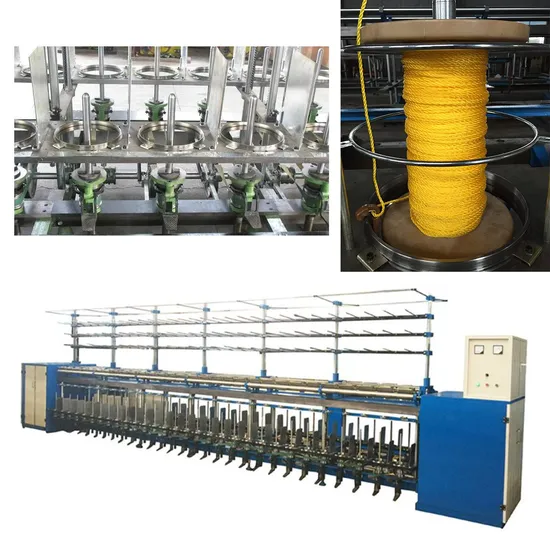

High Speed Compound Yarn Ring Twisting Machine

Product Description

High Speed Compound Yarn Ring Twisting Machine Fibre Twisting Machine

Descripition:
The machine can adopt PLC control system,easy to change the product twist, twist direction,speed and forming shape.The machine has the characteristics of high efficiency,high output,economy and durability.
1. Compact structure :makes machine less occupation of space, The height of the whole machine is reasonable and considerate,which is easy to take off yarn bobbins or change yarn bobbins;
This machine takes small occupation of space, which can improve the utilization rate of working land.
2. Reasonable composition: air duct and yarn guide channel are assigned accurately, to ensure the machine nice appearance and convenient operation.

Technical Parameters:

Model	UW200
Spindle Number	72
Spindle Distance	280mm
Ring Diameter	φ204*38.1mm
Spindle Speed	2400r/min
Twist Direction	S/Z
Up-down Length	300mm
Twist Range	35-403t/m
	Double side
Motor power	22KW
Outside dimension	11.97*1.3*2.1m
Main applicable range: 21S 8-150 yarn count 6000D-13000D fiber 36tex 20-90 polythene

Application:
Company Information:
FAQ:
1. Does one machine can only produce one size?
Not exactly, it depends on the machine.

2. Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed

3. How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.

4. What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.

5. Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.

6. You are trade company or factory?
We are Manufacturer.

---
