Basic Info.
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Horizontal Axis
Gearbox
Nodular Cast Iron
Power Type
Tractor Pto Linkage
Dimension(L*W*H)
1320*1030*800mm
Transmission
Chain Transmission
Transport Package
Iron Box
Specification
CE STANDARD
Production Capacity
500 Sets Per Month
Packaging & Delivery
Package Size
155.00cm * 103.00cm * 103.00cm
Package Gross Weight
320.000kg
Product Description
Product Parameters
| Model | LF-105 | LF-125 | LF-145 | LF-165 |
| working width | 1050mm | 1250mm | 1450mm | 1650mm |
| Nb.of blades | 20 | 30 | 30 | 60 |
| Working depth | 100-180mm | 100-180mm | 100-180mm | 100-180mm |
| Input speed(Rpm) | 540 r/min | 540 r/min | 540 r/min | 540 r/min |
| Rotor speed(Rpm) | 208 | 208 | 208 | 208 |
| Weight(kg) | 335 | 370 | 410 | 470 |
| Outside Dimensions | 1320x1030x800mm | 1520x1030x800mm | 1620x1030x800mm | 1720x1030x800mm |
| Roller dimension | 1320x420x420mm | 1520x420x420mm | 1620x420x420mm | 1720x420x420mm |
| Power required | 20-35HP | 25-40HP | 30-50HP | 35-50HP |
Detailed Photos

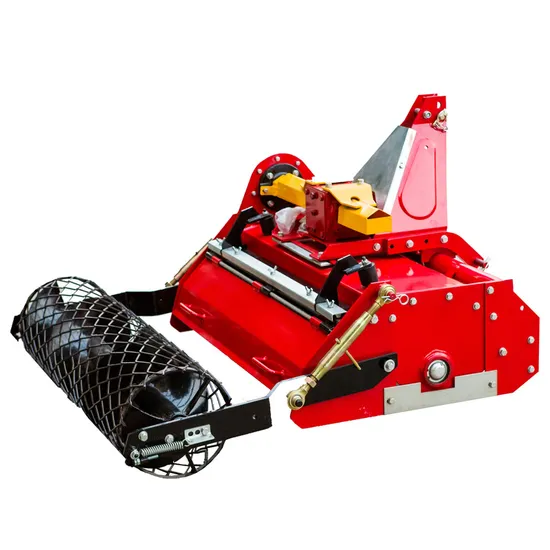

1. LEFA Stone-Burier is the ideal machine to prepare a smooth seed bed in any type of soil, including heavy native soils and hard clay, whether in the presence of stones or compacted layering.
2. It can buries stones, overgrowth and debris from the surface. Then pulverises soil to a fine tilth.
3. The roller section runs over the tilled soil and levels leaving the area ready for grass seeding.
4. LEFA Stone-Burier makes it possible to place stones, grass and other materials deep into the ground leaving finely tilled soil on the surface.
5. Mainly for 20-50HP tractor.
Packaging & Shipping
Packaging Detail: Iron pallet or wooden cases
Delivery Detail: By sea or By air
stone burier-Iron & Plywood case pack 1. Waterproof packing with the international export standard by 20ft, 40ftcontainer.
Wooden Case or Iron Pallet.
2.The whole set of machines size are large as normal, so we will use Waterproof materials to pack
all of them. The motor, gear box or other easily damaged parts, we will put them into box.
We have a professional shipping department, they will try their best to save your container quantity.
Company Profile
Changzhou LEFA Industry & Trade Co., Ltd., is a professional manufacturer and exporter of whole set of agriculture machines and garden tools. Our company was established since 2003 with Hanma Industry Company.
Our main products include rotovator, flail mower, finishing mower, topper mower, wood chipper, plow, cultivator, potato harvester/ planter and Japanese tractor parts, etc.
LEFA machines are greatly popular in various markets around the world, and already reached to Europe, North America, South America,Australia, almost covers 80 countries in World.
LEFA always believe that we will take better farming life to you by top-quality laser cutting machine & CNC bending machine & professional paint-spraying & strong welding.
>>
