Premium Aluminium Spacer Bar for High-Performance Insulated Glass 15A

Product Description

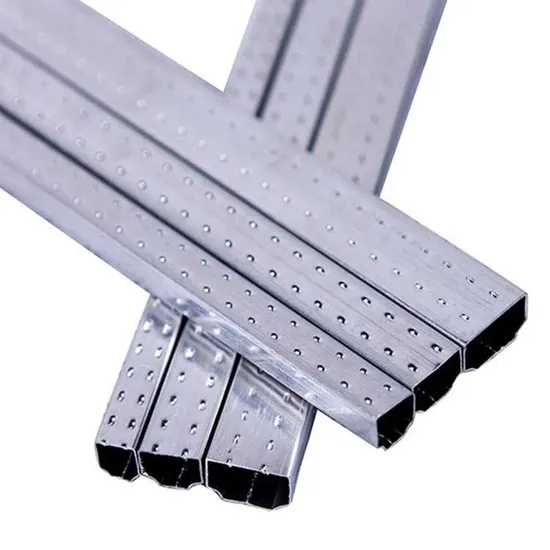

Double Glass Spacer Bar Aluminum Spacer Bar for Insulating Glass Product Introduction
The aluminum spacer for hollow glass (high-frequency welded aluminum strip) is an aluminum product made of 303 alloy aluminum as raw material. It adopts internationally advanced roll forming technology and high-frequency welding process, does not destroy the molecular structure of the raw materials, ensures the activity of the molecular sieve, and does not split during bending and filling.
The high-frequency welded aluminum spacer has an international standard height plus a perfect cross-section, and the surface is bright, beautiful, and has double rows of holes on one side to ensure the activity of the desiccant. Strictly control the procurement and production errors of raw materials, no deformation, accurate and stable size, perfect in terms of product quality and product appearance.
Material
High quality Aluminium alloys material series with thickness of 0.35 mm
Surface Features
Uniform shiny metal, coloured surface with colour wrap-around.
Coating carried out using coil-coating process with colour wrap-around on the butyl flanks. No fogging of coatings.

Performance:
High-frequency welded to eliminate seaming defect.
Double-row perforated: to guarantee the moisture adsorption
Free from grease contamination: complete compatible with sealants
Level and smooth notch: to get perfect connection
Bending performance optimized to guarantee sealing performance at corners
No volatile from Color-profile
Color fastness
Professional Processing Technology
Supported by its professional technology and equipment system, we are providing various customers high quality single-colour decorative bars of processing and installation.
H6.5 Aluminum Spacer

Type	Width(mm) A	Height(mm) H	Length 6m		Length 5m
			Carton Box	Iron Stillage(m)	Carton Box(m)
6A	5.5	6.5	3,840	46,080	3,200
8A	7.5	6.5	2,880	34,560	2,400
9A	8.5	6.5	2,640	31,680	2,200
10A	9.5	6.5	2,280	27,360	1,900
11A	10.5	6.5	2040	20400	1700
12A	11.5	6.5	1,920	23,040	1,600
14A	13.5	6.5	1,680	20,160	1,400
15A	14.5	6.5	1,560	18,720	1,300
16A	15.5	6.5	1,440	17,280	1,200
18A	17.5	6.5	1,134	13,608	945
19A	18.5	6.5	1,134	13,608	945
20A	19.5	6.5	1,134	13,608	945
22A	21.5	6.5	972	11,664	810
24A	23.5	6.5	972	11,664	810
26A	25.5	6.5	486	5,832	405
27A	26.5	6.5	756	9072	630
34A	33.5	7.5	270	3240	225

---
