High-Powered Container Scanning Rail Mobile Vehicle Security Inspection System

Product Description

High-powered container scanning Rail Mobile Vehicle Security Inspection System

1.Product Brief

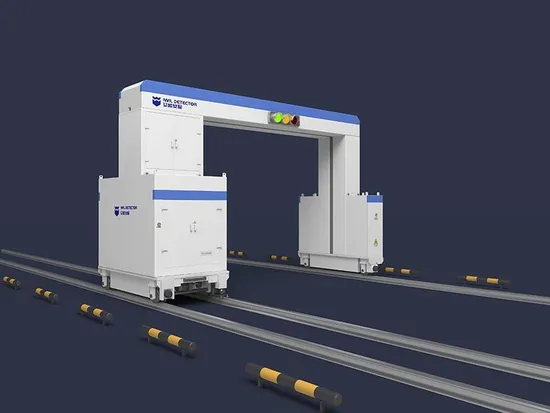

IWILDT™ AN-48002800HMG Rail Mobile Vehicle Security Inspection System is specially designed for the security inspection of container vehicles in customs, ports, military bases and border ports. It reduces the manual time-consuming and laborious touch type safety inspection of trucks, containers and vehicles. Through X-ray fluoroscopy scanning, the images of the material, volume and quantity of the goods in the container are generated to check whether they are consistent with the checklist, and whether there are threats of terrorists, gunpowder, toxic substances, weapons of mass destruction (WMDs), prohibited goods and dangerous chemicals.
IWILDT™ AN-48002800HMG Rail Mobile Vehicle Security Inspection System adopts adjustable electron accelerator from 4MeV to 7.5mev, and the penetration force can reach 350mm steel plate. Up to 30 vehicles can be checked per hour in mobile scanning mode, and 100 vehicles per hour in through scan mode.

Type of X-ray	Electron induction accelerator
Ray energy	4-7.5mev
Steel penetration	350 mm
Radiation protection	200 mm thick lead tank
Scattering angle	80 degrees
Tunnel size	5M (W) x 4.8m (H)
External dimension	9m (L) x 2.8m (W) x 5m (H)(not including track)
Track length	30m
Scanning height	4.8m
Scanning mode	Active mobile scanning,Passive scanning
Throughput	active scanning 30 vehicles / hour; 100 vehicles / hour in passing mode
Scanning speed	active scanning 0.8m/s; fast detection mode can reach 10km/h
Penetration / mm	Active scanning mode: SP ≥ 350mm (scanning speed: 0.8m/s), Passive scanning mode: SP ≥ 300 mm (scanning speed 10km / h)
Wire resolution (in air) / mm	Active scanning mode: WD ≤ 1.2 (scanning speed 0.8m/s) Passive scanning mode: WD ≤ 3.0 (scanning speed 10km/h)
Wire resolution (after steel plate) / mm	Active scanning mode: WD ≤ 4.0 (scanning speed 0.8m/s) Passive scanning mode: WD ≤ 5.0 (scanning speed 10km / h)
Contrast sensitivity /%	Active scanning mode: CS ≤ 1.2 (scanning speed 0.8m/s); Passive scanning mode: CS ≤ 2.0 (scanning speed 10km / h)
Spatial resolution (line pair diameter) / mm	Active scanning mode: SR ≤ 5.0 mm line pair diameter) (scanning speed 0.8 m / s);Passive scanning mode: SR ≤ 8.0 mm (behind steel plate) (scanning speed 10km/h)
Material resolution	Mass thickness (g / cm2): 10 ≤ Ti ≤ 140, scanning speed: 0.8m/s Graphite thickness mm 10 ≤ Ti ≤ 140, scanning speed: 0.8m/s Steel thickness mm 10 ≤ Ti ≤ 140, scanning speed: 0.8m/s
Maximum boundary dose rate	≤ 2.5usv/h
Safety boundary(width)	40m (length) x 50m
Input voltage	AC380V / 50Hz; three phase five wire system
Working time	24-hour continuous operation
Standard	in accordance with WHO, ICRP 103-2007, China, EU and US regulations

Enterprise honor certificate:

FAQ
Q1: Are you a factory or trading company?
A: We are the biggest professional manufacturer of security equipment with almost 15 years experiences in Hubei china.
Q2: What is your MOQ?
A: Normally MOQ 1pcs and the price is negotiable for large quantity.
Q3: How does your factory do regarding quality control?
A: We control every production process in accordance with ISO9001, ISO14001, ISO18001 and CE certification, Radiation safety certification of FDA.
Q4: What is your after-sale service?
A: 100% guarantee on our product; install instruction and video support; software debugging with remote control support; The whole unit 2 ye
After-sales service:
1. installation and debugging: the supplier shall be responsible for free installation and debugging of equipment on the site of the buyer, and provide free on-site training for operation and maintenance personnel.The theoretical training shall not be less than 1 working day, and the practical operation training shall not be less than 3 working days.
2.technical support: the supplier provides effective technical support, and can optimize the processing procedures and adjust the machine parameters according to the characteristics of processed products.Provide support for the design and application of fixture for processing products.
3. warranty period: after acceptance of the machine, the supplier shall provide 12 months of free warranty, free parts and services within the warranty period, timely and effective service.
4. service time commitment: within 10 hours after the supplier receives the machine tool fault report, the after-sales service personnel will arrive at the site to deal with it.
5.technical support after the warranty period: within 5 years after the warranty period, the supplier shall provide free soft technical consulting services. For example, if the mechanical part of the machine tool fails, the supplier shall provide free soft technical consulting services.
6. supply of spare parts after the expiration of the warranty: after the expiration of the warranty, the supplier can provide the buyer with comprehensive preferential maintenance parts.And repair parts are provided to the buyer at the purchase cost of the supplier.

---
