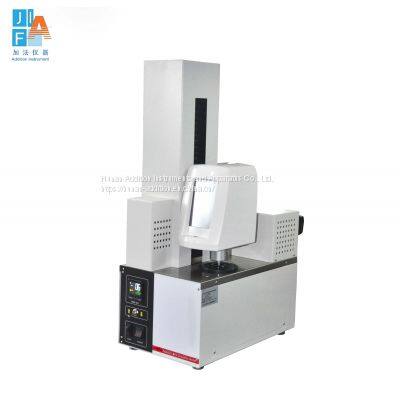

Paraffin Mold Viscosity Tester

Product Details

Product Description

Product Description
Paraffin Mold Viscosity Tester
Model: JF14235D
Product Introduction
The instrument is suitable for detecting the viscosity of the liquid mold material in the range of 0.01Pa·s～10Pa.s; using a rotary viscometer, the viscosity change of the liquid mold material at a specified temperature is measured by changing the shear rate of the viscometer rotor.
Technical Parameter
1, Applicable standards: GB/T14235
2. Refrigeration method: semiconductor refrigeration
3. Temperature control method: digital display PID temperature controller
4. Temperature control range: 0~200℃±0.1℃
5. Speed range: 0.5～60r/min
6, the power of the whole machine: 800W
7. Working power supply: AC220V 50HZ
8. Operation mode: touch screen operation
9. Lifting method: automatic lifting
10, instrument size: 400*250*700mm
11, net weight: 28KG
Main Feature
1. Precision mandrel meets standard requirements and high test repeatability;
2, using metal bath cold trap
3. Standard sample container, 40mm in diameter and 170mm in depth;
4. Special rotary viscometer, equipped with seven-speed spindle speed;
6. Microcomputer temperature controller, PID adjustment, temperature control range: normal temperature～-40℃, PT100 temperature sensor, high accuracy;
7, the viscosity detection range is 0.01pa.s~10Pa.s, the measurement error is ±2%
8. LCD screen display, programmable test speed, test time, automatic calculation results;
9. Equipped with Addition analysis software, which can calibrate the viscometer and analyze the linear accuracy;
10. One-key automatic lifting structure, automatic positioning of the viscometer;

---
