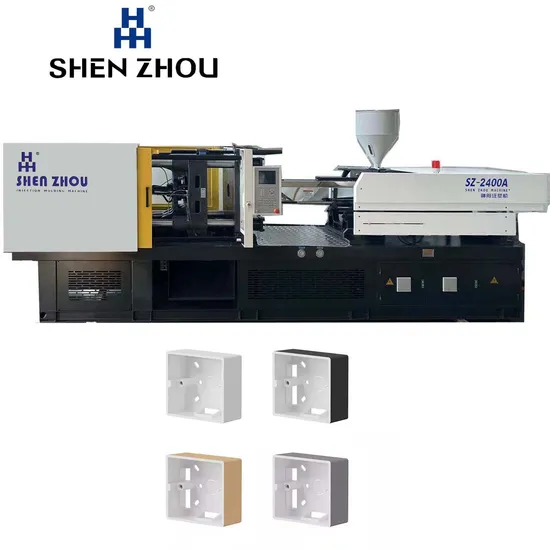

Horizontal Automatic Price Plastic Injection Molding Machine Mold with High Quality Sz-2400A

Product Description

A waterproof junction box is a device used to protect electrical connections and wiring, with the following excellent performance:
1. Waterproof performance: The waterproof junction box adopts a special structural design and sealing material, which can effectively prevent water from seeping into the interior of the junction box, protecting electrical connections from water erosion.
2. Corrosion resistance: Waterproof junction boxes are usually made of corrosion-resistant materials, which can resist the erosion of chemicals such as acid and alkali, and extend their service life.
3. Good sealing performance: The waterproof junction box has good sealing performance, which can effectively prevent dust, moisture, and other impurities from entering the interior of the junction box, maintaining the stability and reliability of electrical connections.
4. High temperature resistance: Some waterproof junction boxes have high temperature resistance and can work normally in high-temperature environments, suitable for some special industrial occasions.
5. Easy installation: Waterproof junction boxes usually adopt modular design, which is easy to install and can quickly connect and fix wires, saving construction time and labor costs.
6. Multiple specifications and types: Waterproof junction boxes have multiple specifications and types, suitable for different electrical connection needs, and can meet the requirements of various application scenarios.
7. Long lifespan and reliability: The waterproof junction box is made of high-quality materials and exquisite craftsmanship, which has a longer service life and reliability, reducing the frequency of maintenance and replacement.
8. Safety: Waterproof junction boxes can effectively isolate electrical connections, reduce the occurrence of electrical accidents, and improve the safety of electrical equipment and personnel.
Overall, waterproof junction boxes have excellent waterproof performance, corrosion resistance, sealing, high temperature resistance, convenient installation, multiple specifications and types, long service life, reliability, and safety. They are widely used in outdoor electrical equipment, industrial equipment, construction engineering, and other fields to protect the safe and reliable operation of electrical connections.
Product Description
Product Parameters
1. Customized mold Information:

ITEM	UNIT	SZ-2400A
INJECTION UNIT
SCREW DIAMETER	mm	55	60	65
SCREW LID RATIO	L/D	22.9	21	19.4
THEORETICAL SHOT VOLUME	CM3	665	791	929
SHOT WEIGHT(PS)	g	605	720	845
INJECTION PRESSURE	Mpa	210	176	150
THEORETICAL INJECTION RATE(PS)	g/s	176.5	210	245
PLASTICISING CAPACITY	g/s	26.4	32.5	40
SCREW TORQUE	N.m	2000
MAX.SCREW ROTATE SPEED	r/min	150
INJECTION STROKE	mm	280
CLAMPING UNIT
MAX.CLAMPING FORCE K	KN	2400
MAX.OPENING STROKE	mm	530
SPACE BETWEEN TIE BARS	mm	555×555
MOULD HEIGHT	mm	200-570
MAX.DAYLIGHT	mm	1100
EJECTOR FORCE	KN	61.5
EJECTOR STROKE	mm	135
EJECTOR QUANTITY		9
OTHER
PUMP MOTOR POWER	KW	22
PUMP PRESSURE	Mpa	16
HEATING POWER	KW	18.5
HEATING ZONE		5
SIZE	m	6.2×1.6×2.1
NET WEIGHT	t	8.0
OIL TANK CAPACITY	L	440
INTERNATIONAL DESIGNATION		2400-1390

Mold information	Content
To be discussed	The price is for reference only,the specific price can be negotiated;if there are any other requirements,please state in advance
Product material	ABS,PP,PC,PA,PMMA,PS,POM and etc.
Moldbase	FUTABA,LKM,HASCO,DME,you can choose
Cavity material	45#,50#,P20,H13,718 2738,NAK80,S136,SKD61 etc
Runner	cold/hot runner
Cavity	multi or single cavity
Customized	Per customer request
Lead time	about 25 days,depond on reality project
Package	standard exported wooden box packed
Design software	UG,PROE,CAD,Solidworks

2. Detail information of bottle cap mold mould steel:

Mould material	Mould hardness	Mould life
P20	HRC 29-33	300000 shot
H13	HRC>43	1000000 shot
718	HRC 30-36	500000 shot
S136	HRC 48-52	50000 shot
2344	HRC>48	800000 shot

3. PET Preform mold:

Name	Mult-cavity preform mould
Cavity	16 24 30 36 ....
Material	PET
Mould steel	S136
Runner system	hot runner
Gate type	valve gate
Eject way	stripper
Mould running	full automatically
Customized	Per customer request

Why Choose Us
Detailed Photos
Certifications
Company Profile
FAQ
1. Why choose us?
We not only supply the mold, but also the machine and related parts. Port city, convenient transportation.
2. How to ensure the quality of mould?
Debug on the machine before delivery to ensure no quality problems before delivery.
3. What about our after-sales service?
There is a perfect after-sales service system, super long warranty period, any product problems can contact us at any time.
4. About the price?
Higher discount for bulk purchase, price can be negotiated.
5. How long will delivery take after placing an order?
High production efficiency,short delivery time, specific circumstances can be negotiated.

---
