High Efficient Double Discs Automatic Metallographic Sample Grinding Polishing Equipment

Product Description

Product Description

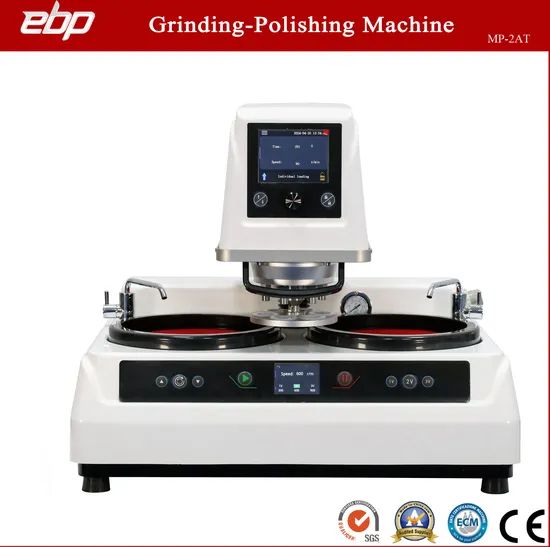

High Efficient Double Discs Automatic Metallographic Sample Grinding Polishing Equipment
In the process of metallographic sample preparation, the grinding and polishing of the sample is an indispensable process. After the sample is ground and polished, a bright mirror-like surface can be obtained. The metallographic sample grinding and polishing machine adopts a frequency converter to adjust the speed, which can make the speed of the grinding and polishing disc infinitely adjustable between 50-1000r/min. The grinding and polishing of the sample can be completed by replacing the metallographic sandpaper and polishing fabric. It is especially suitable for metallographic laboratories in factories, colleges and research institutes, and is an excellent equipment for grinding polishing metallographic samples.
Features:
Electronic lock head, press one key can lock the head, easy operation; One machine can do the rough grinding, fine grinding, rough polishing and fine polishing of metallographic specimens. Double working plates φ250mm, double times improved working efficiency. Pneumatic version automatic grinding head, one time can process 6 pieces of samples. Integral moulding of high-strength FRP material shell, sturdy and durable, never rusty. The faucet adopts copper material, which has good corrosion resistance Stepless speed design, low noise, stable working performance. Can meet meet a variety of needs. With water cooling system to prevent damage to the metallographic structure due to overheating of the sample. And can get more better metallographic surface easily. Product Parameters
Technical Specifications

Model	MP-1AT	MP-2AT
Disc number	Single disc	Double disc
Grinding polishing plate Diameter	φ250mm (optional φ230mm, 300mm)
Sample number	6 pieces φ30mm sample
Disc Rotate Speed	50-1000r/min (stepless adjustable) and 3 constant speed (300rpm, 600rpm, 900rpm); Support clockwise direction and anticlockwise direction rotation
Automatic grinding head	5-150 rpm (stepless speed)
Sample holding type	Single point pressure loading
Force loading	Pneumatic (should work with air compressor)
Loading force range	0-0.7Mpa (work pressure should at 0.1- 0.4MPa)
Motor power	1.1KW
Machine Size (L*W*H) & N/W	455*785*700mm, 75kg	735*570*590mm, 100kg
Package size & G/W	950*680*870mm, 95kg	920*820*840mm, 120kg
Power Supply	Single phase, AC 220V 50Hz
Working environment	Stable, vibration-free work table, ambient temperature 5 ºC - 30 ºC; relative humidity <85%, the surrounding no corrosive gases and conductive dust-free

Standard Accessory:

Name	Quantity
Grinding plate Φ250 (on machine)	1pc of MP-1AT; 2pcs of MP-2AT
Water retaining ring (on machine)	1pc of MP-1AT; 2pcs of MP-2AT
Abrasive paper φ250	2pcs
Polishing cloth φ250	2pcs of MP-1AT; 8pcs of MP-2AT
waterproof ring	1pc of MP-1AT; 2pcs of MP-2AT
Pressure-resistant tube φ8	1pc
Oil-water separator	1pc
Magnetic disc	1pc of MP-1AT; 2pcs of MP-2AT
Anti-stick disc	3pc of MP-1AT; 5pcs of MP-2AT
Water inlet pipe + Water outlet pipe	1pc + 1pc
Level adjust screw	4pcs
Power cord	1pc
Anti-dust lid	1pc of MP-1AT; 2pcs of MP-2AT
Manual	1 pc
Certificate	1 pc

Main Products


Company Profile
About us:
EBP Instruments is a leading factory in China, professional produce and supply all kinds of hardness tester, sample preparation machine, metallographic microscope, and NDT, etc.
