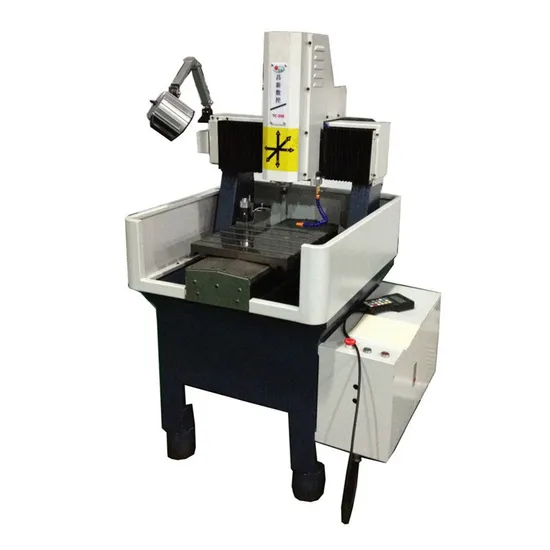

Dongguan Company Mini CNC Milling Machine

Product Description

Dongguan company mini cnc milling machine
Specifications

Table	Size	mm	380*380
	Travel of 3 axis(X/Y/Z)	mm	350/350/140
	Max table load	kg	100
T-slot	Number*width*space	mm	5*10T*70
Spindle (direct drive)	Spindle taper		Electric Spindle ER16
	Spindle nose to table	mm	20-160
	Max spindle speed	rpm	24000
	Spindle Motor power	kw	1.5
Accyracy	Positioning accuracy	mm	±0.008/300
	Repeatability	mm	±0.003/300
Axis motor	Power of X/Y/Z	kw	0.4/0.4/0.4
Feeding Speed	Rapid feed of X/Y/Z	mm/min	2000/2000/2000
	Cutting feed of X/Y/Z	mm/min	0-10000
Parameters	Weight	kg	650
	Dimension(L*W*H)	mm	900*980*1500
	Power	v	380/415
Spindle cooling	Add independent water cooling
Screw guide	Original Taiwan JINGTENG brand
Machine Head balancing system	Servo screw direct drive
Automatic lubrication system	Taiwan pressurized volume automatic oiler, automatic balance distribution lubricant
Control System	Taiwan WEIHONG
Motor	Taiwan WEIHONG
Accessory	1.Tool box (1 set) 2.Tool auto-checking instrument(1 set) 3.High pressure spray gun(1 pcs) 4.Hand Wheel(1 pcs) 5.Machine operating manual 6.Operation and programming manual

Payment Term:
Payment:30% deposit,the balance will be paid before shipping.
Delivery:
20-30 days after received the deposit payment.
Remarks:
1.Warranty:One year free warranty and life time maintenance.
2.Loading port: Shenzhen/Guangzhou
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.
Machined Samples
Our Certificates

Our Customers

---
