Machine Drilling Price Z5180c Factory Direct of Vertical Drilling Machine

Product Description

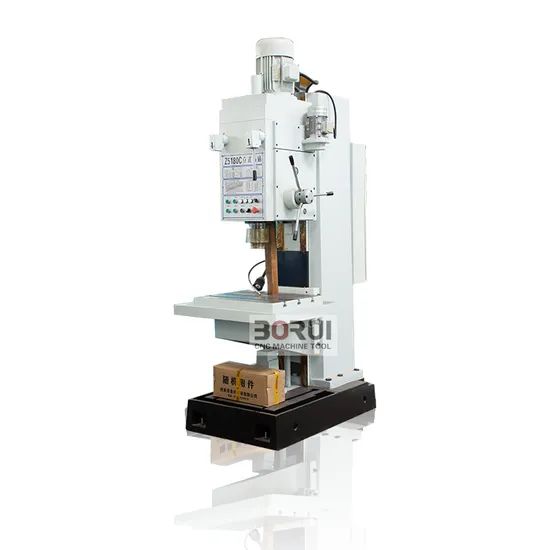

Metal Deep Hole Drilling Machine Z5180C

Products Description.

Specification	Z5110D	Z5180C	Z5163C	Z5150B	Z5140B
Max.drilling dia(mm)	100	80	63	50	40
Maximum feed resistance (n)	45000	30000	30000	26000	16000
Max.The spindle torque (n.m)	1150	800	800	350	350
Spindle Taper	Morse No.6	Morse No.6	Morse No.5	Morse No.5	Morse No.4
Distance from spindle to guideway (mm)	480	375	375	335	335
Spindle travel (mm)	310	250	250	250	250
Spindle box (mm)	300	250	250	200	200
Spindle speed range (r/min)	26-320,6 steps	40-570,9 steps	40-570,9 strps	31.5-1400,12 steps	31.5-1400,12 steps
Feed (mm/r)	0.096-0.717,6 steps	0.1-0.78,6 steps	0.1-0.78,6 steps	0.056-1.8,9 steps	0.056-1.8,9 steps
Table travel (mm)	300	300	300	300	300
Table size (mm)	760-650	650-550	650-550	560-480	560-480
Max. Distance from spindle to table surface (mm)	850	800	800	750	750
Main motor (Kw)	7.5	5.5	5.5	4	3
Coolant pump l/min	25	25	25	25	25
Machine size (mm)	1465*970*3170	1452*965*2787	1452*965*2787	1090*910*2530	1090*910*2530
Weight (Kg)	3500	2500	2500	1250	1250

Details Images.
Company Profile.
FAQ.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Contact Us.

---
