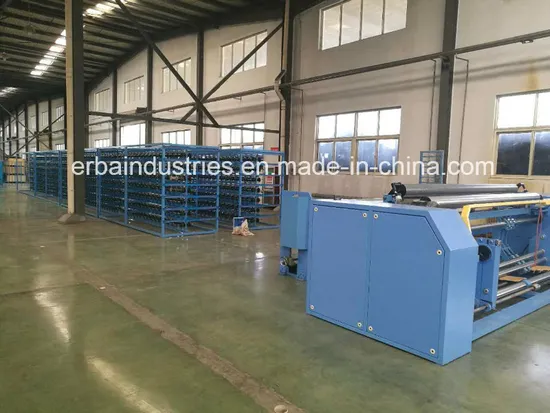

Direct Warping Machine for Fiberglass Mesh

Product Description

Main technical parameters

Main Technical Data of fiberglass warping machine
1	warping speed	10~160m/min
2	work width	1000-3800(according to customer request)
3	beam flange diameter	550mm/800mm
4	steel reed's motion could be adjusted to 0~15mm to left and right with the frequence of 22 times per minute.
5	braking form	pneumatic round plate clamping brake
6	braking distance	less than 1m(100m/min)
7	pressurizing method	suspending arm for pneumatic pressurizing with step-less adjustments and pressure meters
8	operating screen	6 inches touchable screen
9	creel winding density	0.8~1.8g/cm³
10	creel form	rectangle
11	fiber moving form along creel	inner movement or outer movement
12	spindle' distance on creel	180mm/200mm(according to customer request)
13	yarn tension device	double columns,rings compensation(according to customer request)
14	number of apindles	800~3800(according to customer request)
15	power of main electric motor	11KW
16	input voltage	380V±10%
Scope of application: Guide the fiberglass on creel into steel reeds,after evenly arranging,coil onto the weaving beams for the use of beaming or sizing or weaving machines.

Technical Features
1. Axial displacement of warping table is control by accurate servo motor. Start point and section location can be set automatically.
2. Space reed and section are kept in equidistance which is optional .
3. Warping brake is clamp type. Beaming brake is external steel strip damping type, which eliminates the noise and uneven tension problems occured in traditional.
4. It is equipped with microcomputer and PLC, with function of total length count, roll lenth count, section count, broken end memory and stop motion of full total length or warp, etc.
5. Touch screen shows info clearly, easy to operate.
6. Section tension is constant during warping and beaming.
7. Steel cone with angle 1:6.3 is good for kinds of warping.
8. Wax and pressure device are optional for beaming machine.
9. Creel number and pitch are as your requirements
10. Warp stop motion and static eliminator are optional.
Contact person: TINA FUNG

---
