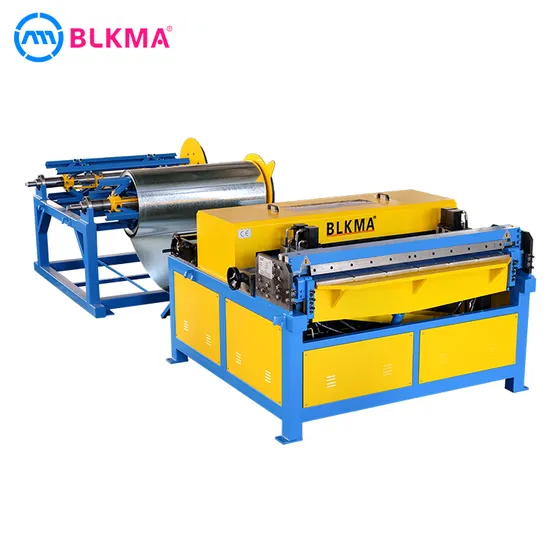

Sheet Metal Auto Duct Production CNC Auto Duct Line 3/Coil Duct Line 3

Product Description

sheet metal auto duct production CNC auto duct line 3/Coil duct line 3

YOUTUBE VIDEO

https://cnblkma.en.made-in-china.com

Function:
Duct production line 3 can drive blanking for duct. Meantime, it's very suitable for diversified production like TDF/angle steel/inserted flange forming; the angle steel flange and inserted flange can be bent into a square-shaped pipe automatically.
Main import Configuration:
Japan Mitsubishi CNC system+Schneider electrical system Beijing Huade plus hydraulic system from Taiwan Japan Omron encoder Basic Configuration: One electric coil cradle(two material trays) One set of leveling and beading equipment Hydraulic angle-shearing machine with four sets of die Hydraulic sheet-shearing machine, hydraulic bending machine, hydraulic press machine A set of CNC computer control system and production software

Model	Sheet thickness(mm)	Max width(mm)	Max working speed(mm)	Coiler max weight(T)	Dimensions (mm)	Power (kw)	Weight (T)
ADL-3-1300	0.5-1.2	1300	15	7	5500*1950*1350	7.5	3.5
ADL-3-1500	0.5-1.2	1500	15	7	5500*2150*1350	7.5	4

Packing and Delivery:
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union, and so on. TT, 30% in advance, 70% balance before the shipment.
4. OEM is available?
Yes.

---
