Specifications 1.power: Diesel engine /Emotor
2.capacity:600-1500kg/h
3.raw material diameter:below 50mm
4.final powder below5mm

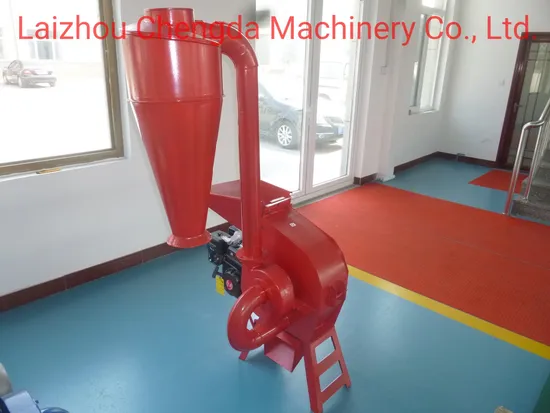

Advanced Technology Wood Hammer Mill
wood hammer mill are used for grinding the bio-mass like straw /stalk / wood chips / tree branches and forest waste into small granular material of less than 3-5mm,which is perfect size before pelletizing and briquetting.
The machine could be driven by the diesel engine, motor, tractor, etc.it is equipped with high carbon steel blade and works with high efficiency. Widely used in swine farm, wood factory, etc
we have the hammer mill capacity from 100kg/h to 1500kg/h.
we have the power Emotor and Diesel engine
we also have the wood cutter machine,that can cut the big diameter into small pieces
we have the pellet machine ,can make your powder into the sawdust pellet and fodder pellet.
we have the pellet cooler ,can make the hot pellet turn into the ordinal tempeter.
the hammer mill technical data as below:
| MODEL | POWER | OUTPUT(KG/H) | N.W/G.W(kg) | PACKING SIZE(cm) |
| CF158 | 2.2kw SINGLE/3 PHASE | 60-120 | 75/95 | 48*58*63 |
| CF198 | 7.5HP GASOLINE | 200-300 | 120/140 | 90*58*102 |
| CF198 | 4KW | 120/140 | 90*58*102 |
| CF420B | 7.5KW | 400-600 | 260/320 | 112*82*107 |
| CF420C | 11KW | 320/360 | 112*82*107 |
| CF420A | 15HP DIESE | 330/360 | 147*73*109 |
| CF420A | 22HP DIESE | 350/390 | 147*74*111 |
| CF500A | 55HP DIESE | 800-1100 | 800/840 | 150*142*123 |
| CF500B | 22KW | 600/630 | 124*97*106 |
| FAQ |
| 1. How to order? |
After you decide to purchase, we will send you proforma invoice with our bank information,
bring this PI to the bank, and ask to make T/T for the payment. For single set, your machine can be ready within 30-45 days after we getting the payment, we will send to the port and deliver to you by sea. |
| 2. Related products? |
| CF158 |
| 3. How to get to your factory? |
| Our company is located in Sanlihezi Village, Wenfeng Road, Laizhou, Shandong province, near Qingdao, if you arrive in Qingdao Liuting Airport, we can drive to Qingdao to pick you up to our factory. |
| 4. How long is your warranty period? |
| One year |
| 5. How does your factory do quality control? |
| Our factory has gained CE certificate and ISO certificate. " Quality is priority" we always pay great attention on quality controling from the begining to the end. |
| Our Services |
1. We provide 1 year guarantee.
2. We provide English manual and video for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. We provide feed formula and free spare parts. |
