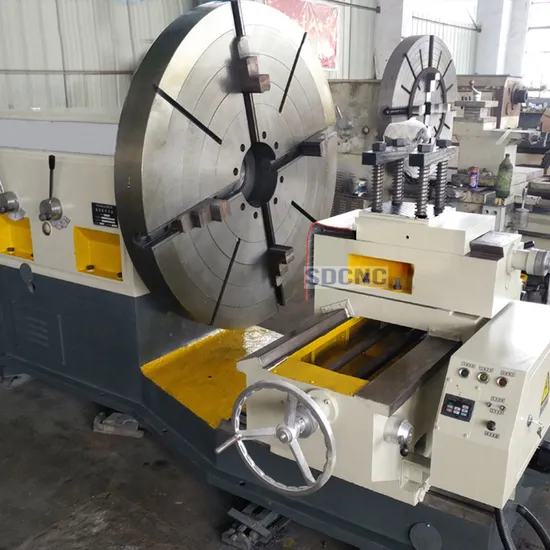

Cw6016 Dependable Lengthened Lathe/Large Floor Lathe/Metal Lathe

Product Description

Product Description
Conventional Floor Type Lathe Machine For Turning Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,Shaft,etc 1. Outstanding Features More than 50 years' experience in machinery industry since 1960s. Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional) Base adopts triangular guide design Reasonable structure High performance with low cost Exported to over 40 countries Maximize Customer's Profitability under the minimum invest cost compared with other competitors. Application: The base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry. 2. Technical Parameters

Name		CX6010	CX6012	CX6016	CX6020	CX6025	CX6025	CX6030	CX6036
Item	Unit
Max. Swing Diameter	mm	1000	1200	1600	2000	2500	2500	3000	3600
Max. Weight of work-piece	T	1	1	2	2	3	2	5	5
Max. Length of work-piece	mm	400	400	400	600	600	600	600	500
Range of Spindle Speed	r/min	16-128	16-128	16-128	12-94	12-94	12-94	4-40	4-40
Chuck Diameter	mm	800	1000	1400	1600	2000	2000	2500	3000
Horizontal Stroke	mm	320	320	320	320	320	320	320	320
Longitudinal Stroke	mm	500	600	800	900	1250	900	1500	1800
Main Motor Power	Kw	7.5	7.5	11	15	15	15	22	30

---
