Agricultural Tiller Crawler Tractor Agriculture Farm Machine Mini Cultivator Rotary Diesel Power Tiller

Product Description

Product Description

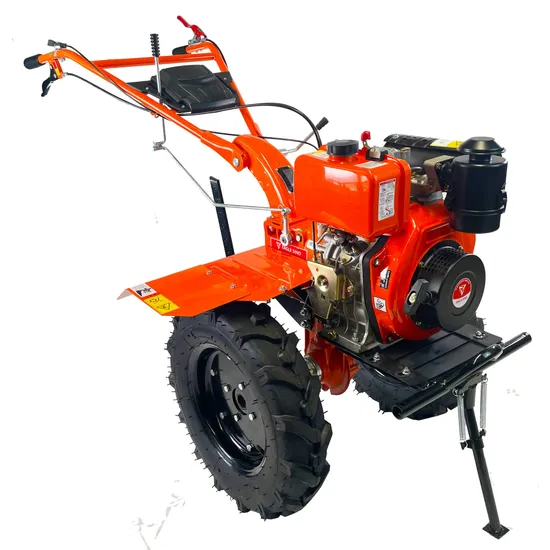

178F Agricultural Machinery Mini Tiller
EAGLE SINO POWER TILLER can be used for a variety of agricultural operations such as ploughing, ridging, furrowing, weeding, fertilising, harvesting and so on.
Direct power transmission
178F diesel micro-tiller adopts direct connection method, the power transmission is more direct and efficient, which reduces the energy loss and improves the working efficiency.
Compact structure
The whole machine has a compact structure and occupies little space, which is easy to operate flexibly in narrow farmland space and is not easy to be restricted by the terrain.
Good stability
The direct-connected structure makes the machine run more stable, reduces vibration and noise, and improves the comfort of operation.
Easy maintenance
The relatively simple structure design reduces the difficulty and cost of maintenance, which is convenient for farmers to carry out routine maintenance and repair.

Product name			173F Diesel powered Power Tiller
model name			1WG4.5-110FC-ZC
Specification Model			Handheld
Matching Engine	Model Name		178F Diesel engine
	Structure Type		Forced air-cooled, four-stroke, swashplate, single-cylinder
	Nominal Power		4.0 kW
	Nominal Speed		3600 r/min
	Starting Mode		Hand pull start
	Fuel Type		Petrol
Overall dimension(mm)			1740x1100x800
Weights			97kg
Transmission mode			Gear
Connection mode			Direct connection
Adjustment of handrail		Horizontal direction	0 °
		Vertical direction	100°
Knife and roller		speed	Fast gear F:130 r/min Slow gear S:93 r/min
		Maximum turning radius	180 mm
		Total number of knives installed	32
Type of rotary ploughing knives			Dryland Knife
Main clutch		Type	Friction blade type
		Condition	Normally open
Ploughing width			1100 mm
Ploughing depth			≥100 mm
Working speed			0.1~0.3 m/s
Hourly productivity			≥0.04 hm²
Fuel consumption per unit of working area			≤30 kg/hm ²

Detailed Photos
★ Large Fuel Tank
Thickened material, environmentally friendly paint, anti-corrosion, anti-oxidation, durable, long-lasting work, high efficiency.
★ Thickened Gearbox
Transmission engine for the core components, EAGLE SINO gearboxes are produced after high-strength testing of the new thickened gearbox, the box and gears are after high-strength testing done to strengthen the thickening process, quality life is guaranteed.
★Keep Out Soil
During the farming process, the fender can effectively block the splashing dirt and prevent it from entering the key parts of the machine, such as the engine and gear box, thereby extending the service life of the entire machine.
Company Profile
Chongqing Eagle Sino Machinery Co.,Ltd, specializing in the production of power tillers, power weeder, cultivator, water pump, generators, brush cutters is located in No. 178 longtang dadao, longshui, dazu, chongqing, China. With a commitment to quality and innovation, we have established ourselves as a leading manufacturer in the agricultural machinery industry. Our factory covers an extensive area and is equipped with advanced production facilities and technologies. Our state-of-the-art assembly lines ensure efficient and precise manufacturing processes, allowing us to meet the growing market demand. Our team of highly skilled engineers and technicians possess extensive expertise in the design and development of micro tillers.
They constantly strive to improve the performance, durability, and functionality of our products to provide farmers with reliable and efficient tools for their agricultural operations. In addition to our focus on quality, we also place great emphasis on customer service. Our dedicated sales and support teams are always ready to assist customers with their inquiries and provide prompt after-sales support. With years of experience and a passion for excellence, our products are dedicated to delivering high-quality products and services to customers around the world, contributing to the modernization and efficiency of agricultural production.
Packaging & Shipping
FAQ
Q1:Do you support OEM/ODM?
A1:Yes.We can offer OEM/ODM service.
Q2:Are the engines of rotary tiller machines customizable?
A2:Yes. We can customize the engine according to customer's design.
Q3:What is your MOQ of power tiller?And how long is your processing time?
A3:1 sets. If there is no stock, it will be 10-20 working days, if there is stock, it can be sent out immediately.
Q4:How long is your warranty?
A4:1 year or 6 months warranty whichever comes first except the wearing and tearing parts.
Q5: What are your terms of payment?
A5: For large purchases, we can accept 30% deposit and 70% final payment when the goods are ready.
Q6: How do you ship and how long does it take to get there?
A6:We usually ship by express or ocean freight, other shipping ways are also available.
Q7:How do you handle product failures?
A7:First of all, our products are manufactured under a strict quality control system. And there is a strict inspection process before shipment. The rate of defective products and low. For defective batches, we will repair and resend them to you, or we can discuss a solution, including a re-recall, depending on the actual situation.

---
