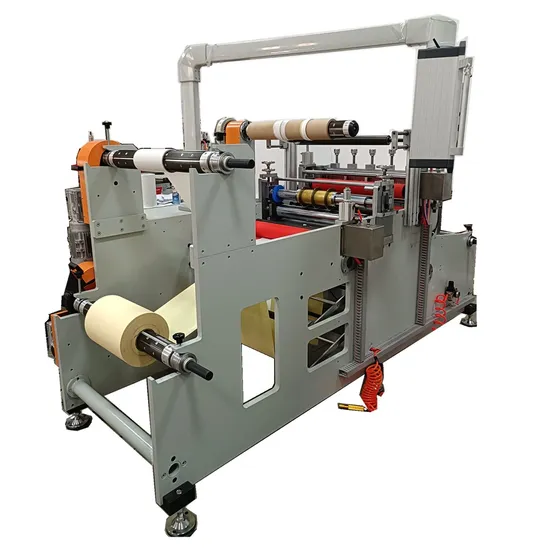

Automatic Sheet Cutting Machine (half cut and cut off machine)

Product Description

Reflecting Film/Shading Film sheet cutting machine
Sheet Cutting Machine ( half cut and cut off machine) Product Description
1.
Functional characteristics:
This machine is suitable for cross cutting the web-form materials. It has features such as computer control, converter speed regulation, constant-length setting, automatic counter, and sound-ray alarm system, etc.
Its compact in structure, innovative in design, and high in automation.
It is necessary equipment of cross cutting the web-form materials into sheet form materials.
Electric eye can added on the machine for track printed mark
2
The machine apply to PVC adhesive sheet, insulating paper, Mylar sheet, foam, industry adhesive tape, electronic adhesive tape and all kinds of electronic material sizing, through and kiss cutting.

Sheet Cutting Machine ( half cut and cut off machine) Product Parameters

Touch Screen	KUNLUN TONGTAI	Beijing China
Programmable Controller	MITSUBISHI	Made in Japan
Servo Driver	Delta	Made in Taiwan
Servo Motor	Delta	Made in Taiwan
Motor of cutting knife	TPG	Made in Japan
AC Contactor	RENMIN	Shanghai Made in China
20A Solid State Relay	Omoron	Japanese
Electric eye	Panasonnic	Made in Japan
Kiss Cut knife	Import 3pcs	Japanese

Model	DP-550 X+Y sheet cutter DP-600 sheet cutting machine
Max Feeding Width ( mm )	550 600mm
Cutting length	10-500mm 10-600mm
Precision error	±0.05MM
Main Engineer Power ( kw )	2.2 7
Speed ( t/m )	150 (1-180MM)
Size ( mm )	2500*1400*1680
Weight ( kg )	600KG
voltage	380/220V 50HZ
FOB Shanghai Price (USD)
Delivery time	30 days
Payment terms	TT (30% advanced,70% paid of before shipment)

Detailed Photos

---
