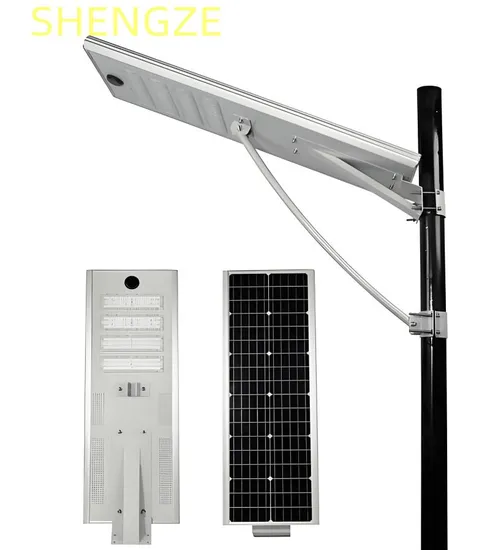

Integrated Solar LED Street Light The power range of our integrated solar LED street lights can vary depending on the model and specifications. The typical real power ranges from 10 watts to 100 watts due to size limitations. However, at Yangzhou Shengze Lighting Technology Co., Ltd., we have developed the Luxor Series integrated solar street light with a flexible and spacious battery box design, allowing us to extend the maximum power to an impressive 120 watts.
When selecting the appropriate power range for an all-in-one street light, we take into consideration your specific lighting requirements and the area coverage you need. Our goal is to provide you with a solar LED street light that meets your unique needs and ensures efficient and reliable lighting.
| Solar Panel | Solar panel(mono crystalline silicon) 18V |
| 60W | 60W | 70W | 80W | 110W | 120W | 160W
|
| LED power | 30W | 40W | 50W | 60W | 80W | 100W | 120W |
| Battery Capacity | LifePO4 battery |
| 12.8V 24AH | 12.8V 24AH | 12.8V 30AH | 12.8V 30AH | 25.6V 24AH | 25.6V 36AH | 25.6V48AH |
| Chip Lumen | 130~150 lm/w |
| MPPT Controller Current | 5A | 10A | 10A | 10A | 10A | 15A | 15A |
| Led Chips Brand | BRIDGELUX/CREE OR CUSTOMIZED |
| Led Life Time | 80000hours |
| Viewing Angle | 70*120° |
| Work Time | 6-8hours per day,2-3 days back up |
| Working Temperature | -30ºC~+70ºC |
| Color Temperature | 3000-6500k |
| Mounting Height | 4-5m | 6-7m | 7-8m | 7-9m | 8-10m | 8-10m | 8-10m |
| Space between Light | 10-15m | 15-20m | 20-25m | 20-25m | 25-30m | 30-35m | 30-35m |
| Lamps Material of main body | aluminum alloy |
| Certificates | CE / ROHS / IP65 |
| Product Warranty | 3 years |
| G.Weight | 15.5kg | 15.5kg | 17.5kg | 20.5kg | 31.5kg | 32.5kg | 38.5kg |
| PIR Sensor | YES |
|
| Automatic All In One Light Working Principles |
| Embrace the cutting-edge world of innovation with our advanced software-driven system, expertly crafted to propel the wiper blade in a perfectly synchronized back-and-forth motion. This revolutionary technology ensures your solar light surface remains pristine and highly efficient by effortlessly sweeping away dust and sand, paving the way for seamless and uninterrupted illumination. |
| Automatic All In One Light Function |
| Achieve effortless maintenance of your solar panel's peak performance by ensuring it remains dust-free each day. This proactive strategy guarantees that your solar panel consistently operates at its maximum efficiency, harnessing the full potential of solar energy.Experience outstanding longevity with our state-of-the-art heat dissipation system, precisely crafted to significantly extend the lifespan of your light. Enjoy enduring performance and reliability with this superior engineering solution.Illuminate your surroundings with unparalleled brilliance through the exceptional high lumen Netherlands LED chip, delivering an impressive output of 140-170lm/W. Witness lighting excellence that transforms your environment with clarity and vibrancy.Enjoy unmatched convenience with our lights, featuring a straightforward installation and maintenance process that demands minimal effort. Experience ease and efficiency, making these lights a perfect choice for hassle-free use.Say goodbye to the complexities of expensive and intricate pipe-laying or underground wiring. Our solution is tailored for simplicity and cost-effectiveness, ensuring efficient installation without unnecessary complications. |
| We customize each street lamp product to perfectly meet your specific requirements, ensuring an ideal fit for all customer needs. Experience personalized solutions that cater to your unique preferences and demands. |
