US$50.00-52.00
|
100 Pieces
(MOQ)
|
Basic Info.
Application
Park, Square, Factory, Garden
Certification
CCC, CE, CQC, ETL, GS, SASO
Operating Voltage
85-265V
LED Chips Brand
Bridgelux
Specification
333.4*508*251.4mm
Production Capacity
6000PCS/Month
Product Description

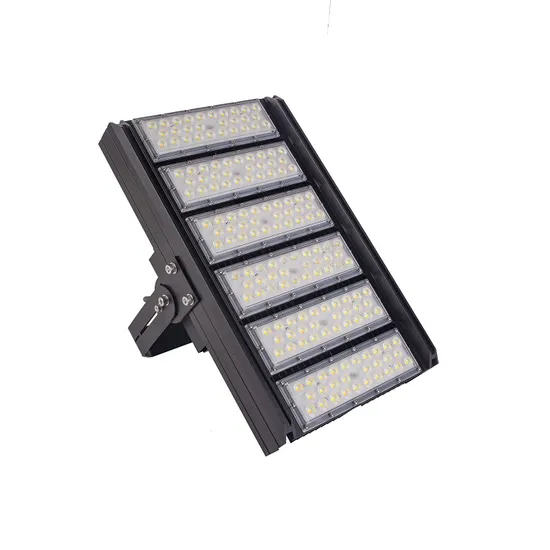

High Brightness 600w Outdoor movable lighting plaza high-pole lamp square lighting LED Flood Light
1.Parameter
1
| Model
| JYT11F-600
|
2
| Input voltage
| AC90-305V 50/60HZ
|
3
| power
| 600W
|
4
| Driver efficiency
| ≥90%
|
5
| Power factor
| ≥0.95
|
6
| LED quantity
| 168pcs(6 modules)
|
7
| LED type
| 5050
|
8
| Luminous efficiency
| 130-170lm/W
|
9
| Color temperature
| 5700K
|
10
| CRI
| ≥70
|
11
| Beam angle
| 145*65° 145*75°
|
12
| Surge voltage
| 10KV
|
13
| Operation temperature
| -30ºC~+45ºC,10%~90%RH
|
14
| Storage temperature
| -30ºC~50ºC
|
15
| LED life
| >50,000h
|
16
| Housing material
| 6063-T5 AL + PC
|
17
| SIZE(mm)
| 333.4*508*254.4
|
18
| LED lifespan
| 340*440*165
|
| 19 | Net weight (kgs) | 9 |
20
| Certifications | CE, RoHS |
21
| Wind resistance level
| Level 14 (42m/s)
|
22
| IK
| ≥IK09
|
23
| Warranty
| 5 years
|
24
| Driver
| Inconvenient/meanwell
|
2.Features
1 Independent intellectual property rights design,with a number of advanced technologies.2 Convection heat dissipation structure to ensure lamp life.3 Adopt 5050 high reliability EMC bracket,LED junction temperature constant.4 The lamp body is made of stretch aluminum,which has higher impact resistance.5 Electrostatic spraying,strong corrosion resistance,durable.6 The lamp module can be combined with different powers to meet different area lighting.
7 The installation Angle is adjustable.8 Various optical designs,suitable for various intersections,elevated,airports,ports,tunnels,squares and other places.
3.About Product
High efficiency LED LIGHT SOURCEJinyuan led floog lights are using high bright light source, providing excellent lumen output, long-lasting stability and
splendid sight. The efficiency of 5050 chips is more than 185 lm/w.DIE CASTING ALUMINUM MOLDINGProfesstional outdoor powder, corrosion and rust resistance, excellent heat dissipation performance.
High-END LED DRIVERHigh-end led driver like Meanwell HLG, XLG series, Inventronics driver like EUM series and Philip brand driver. Dimmable is
optional.
Power-off protection socket design makes led street lights more safe.
4.Optical
5.Application
·Area Lighting
·Architecture Lighting
·Stadium Lighting
·Light Tower
·Light Tower
· Flood lighting vehicle
. Square lighing
>>
