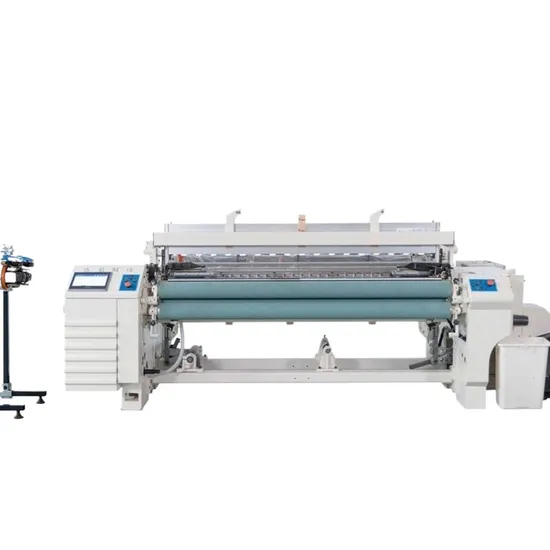

Fully Automatic Gauze Bandage Rolling Cutting Machine Gauze Bandage Making Machine Medical Gauze Air Jet Loom

Product Description

JLH425 Specification

Item		Specification	Remark
Reed width	Reed width(cm)	190 210 230 280 340 360
	Useful reed width	Reduce 0-60cm (150-230cm) Reduce 0-80cm (280cm above)
Fabric	Material & weave	Gauze fabric Low density baby product
Power	Main power	1.5kw(190cm-230cm) 2.2kw 280cm 2.8kw 340cm	Power consumption is depend on reed width and shedding method.
Speed	Motor-belt pulley	RPM 550 600 650 (below 230 cm, )	Standard configuration only for one option.Customer should pay extra charges for others options.
		RPM 450 500 (280cm)
		RPM 400 450 (340,360cm)
Weft insertion	Weft selection	Single color D double color Four color Six color
	Magnetic valve	SMC Japan	3 nozzle per valve
	Feeder	Vibration model
		Without WPS WPS
		1 2 (above 230cm
	Nozzle	Energy-saving nozzle
Shedding	Shedding method	Crank plain shedding
	Heald frame	2 4 Brand Jinlihua China
Let off device	Mechanical type Electronic type	Single beam
	Flange diameter	Ø800 Ø914 Ø1000
Take up device	Take up	Electronic take up (ETU) Mechanical take-up(MTU)
	Max cloth roll diameter	Ø600mm(crank) Ø1200mm(jumb batching motion)
	Weft density	Take 40s cotton yarn for example
		4-60picks/inch
Beating	Roller beating system	Four-bar beating -up motion (below 230cm) Six-bar-beating-up motion (above 280cm)
Selvage		Leno gear selvage
edge		Tuck-in device or leno selvage
Temple		Top mounted Bottom mounted Adjustable top mounted	For making gauze,no have temple
		Ring number 2 4 15 20 30 42 others
		Rubber type
Cutter		Mechanical cutter
Lubrication		Manual oil supply Automatic oil supply
Stop motion	Weft stop	Reflective weft feeler One heads system Two head system
	Warp stop	Electric 2-row contact bar system
Control system	Inovance brand Made-in-China	With NAVI-borad(data setting, automatic control,monitoring,self-diagnosis function, WPS interface )
Automation	Pick ending	APF automatic pick finder
Accessory		Heald wire s.s	3000pcs
		Warp beam	1:1.5
		Cloth roller	1:1.5
		Reed energy-saving type	1:1
		Dropper close or open	3000pcs

Detailed Photos

Apply pressure air to looms and steel furnace air pressure machines
Fu Shen and Hu Zhong used in the water meter to report water to the Eastern School of Black and White Factory,
Compressor, bottle machine, water conveyor supporting equipment, leg related equipment and tooling, such as forklifts, warp machines, winding machines, bobbin machines, bobbin machines, rubber light machines, etc.

*We would like to supply high-quality products and satisfy every customer's needs.
* Provide all equipment procurement and technical guidance, plant layout and factory operation, machine repair, maintenance and training (not free).
*If you have any suggestions on how this website and our services could be improved to serve you better, please do not hesitate to let us know.
Company Profile
Certifications
Packaging & Shipping
*If you have any suggestions on how this website and our services could be improved to serve you better, please do not hesitate to let us know.
FAQ
Q:Are you factory or trade company?
A:We are factory with trade department

Q:What kind of product do you make?
A:Water jet loom,air jet loom,medical gauze loom

Q:Do you have engineer work available in abroad?
A:Yes,we have more than 20 engineers for sales service in domestic and abroad.

Q:Which market has your water jet loom and air jet loom?
A:We sold machine in India,Pakistan,Russa,Uzbekistan,Tailand,Korea,Indonesia,Ethopia,
South Africa,Turkey,Uganda.

Q:How can we go to your factory?
A:Arrive at Qingdao air port,take one hour to our factory by car.We will pick you up from air port.

---
