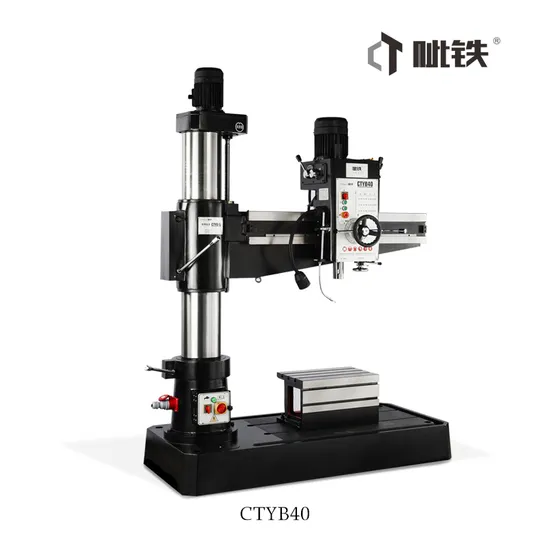

Industrial Radial Arm Drilling Machine with Low Price Ctyb40

US$4,471.00
1-4 Sets
US$4,292.00
5-9 Sets
US$4,114.00
10+ Sets

Basic Info.

Model NO.
CTYB40
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Produce Capacity
1000
Feature
High Precision
MOQ
1PC
HS
8459290000
Transport Package
Standard Wooden Packing
Specification
1760*810*2370mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
200

Product Description

Max.Drilling capacity Casting:40mm Steel parts:32mm
Spindle taper MT4
Spindle travel 200mm
Spindle feed range/Grade 0.10-0.25rpm/3
Rocker arm rotation angle ±180
Distance from spindle to column guide rail 360-1300mm
Distance from spindle end to table surface 260-1050mm
Spindle speed range 32-1220rpm/12
Main motor power 2.2/1.5kw
Lift motor Power 1.1kw
Net weight 1300kg
Overall dimensions 1760x810x2370mm
Package Size 2570x1910x960mm
