China CE Standard Factory Price Pdlc Electric Smart Film Insulated Double Glazing Glazed Decorative Laminated Safety Glass for Window Door Curtain Wall Facade

Product Description

Switchable PDLC Building Decorative Glass Laminated Tempered Smart Privacy Glass

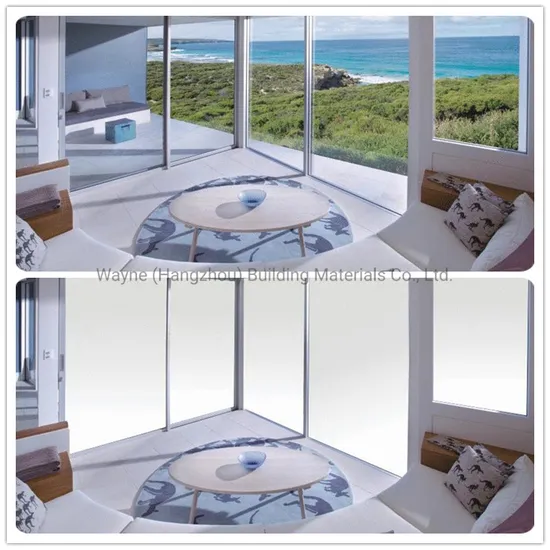

Smart glass is a laminated glass product consisting of a Polymer Dispersed Liquid Crystal (PDLC) film sandwiched between two layers of glass and two layers of conductive interlayers. This PDLC film is what allows you to change the visual appearance of the glass from opaque (translucent) to clear (transparent).
When electricity is applied to the film the liquid crystals line up, changing the glass from opaque to clear. Conversely when electricity is removed, the liquid crystals return to their normal scattered positions changing the glass back to opaque.

Technical Parameters:

Item		Unit	Criteria	Test Method and Standard
Rated Voltage	ON	V	36 / 48 / 60 (AC50Hz)	Multimeter
Power Consumption	ON	w/sq.m	1.5 / 2.5 / 4.0	Multi - parameter Measuring Instrument
Visible Light Transmittance	ON	%	>85	GB/T 2680-94
	OFF	%	>65
Directional Light Transmittance	ON	%	>78	GB5137.2-2002
	OFF	%	<3
Haze	ON	%	<3	GB/T 2410-2008 Spectrophotometer
	OFF	%	>95
Response Time	ON	ms	<45	Liquid Crystal Multi - parameter Measuring Instrument
	OFF	ms	<200
Viewing Angle	ON	°	>160	Visual Inspection
UV Blocking Rate	ON	%	99	ISO 9050-2003
	OFF	%	99
Minimum Privacy Distance	OFF	cm	3	Visual Inspection
Appearance Quality		/	Passed	GB 15763.3-2009
Size Tolerance		mm	Passed
Heat Resistance		/	Passed	GB 15763.3-2009
Humidity Resistance		/	Passed
Radiation Resistance		/	Passed
Falling-ball Impact Peel Performance		/	Passed
Shotgun Bag Impact		/	II-1
Sound Insulation		/	>35dB	GB 18910.1-2002
Heat Insulation		/	>class 2	GB 8484-2008
Vibration Performance		/	Passed	GB 6382.1-1995
Lifespan	ON	h	>80 thousand	GB 18910.5-2008
Switching Times		Times	>2million	GB 18910.5-2008

Our advantage:
NO.1 : Max width 2000mm with biggest size in the market;
NO.2: Our smart glass could be produced with two methods, with autoclave and with oven.
NO.3 : Both flat and bent smart glass could be provided as per design request.
NO.4: Our smart glass has the best transparency when power on, least haze, and it has a good privacy function when power off.
NO.5: Professional seaworthy wooden crate packing for LCL and client receive it safely.
NO.6: Best Service before and after sales.
NO.7: Best technical support from our professional team with years experience.
NO.8: More design and color available on pdlc smart glass
NO.9: Double Glazed PDLC smart switchable privacy glass available
Application:

Dimension Range:Max 2000mm * 3500mmThickness:3+3, 4+4, 5+5, 6+6, 8+8, 10+10, 12+12,15+15,19+19
Features :• It is safety glass like laminated glass;• Environmental protection, block 90% infrated ray and 98% UV.• Sound proof, prevent the spread of voice, and reduce the noise;• Privacy protection;• Function as projector screenSubstrate:clear glass, ultra clear glass, tinted glass
Applications: • Hotel Bathroom• Indoor rooms spacer • Office partitions• Curtain walls• Facades • Conference rooms• Meeting rooms• Hospitality Projection• Restaurants• Gymnasiums
Factory View:

Packing :

Contact us:
For further information, please feel free to contact with us any time, we will reply within 24 hours.
Contact Person: Mrs. Alice Guo

---
