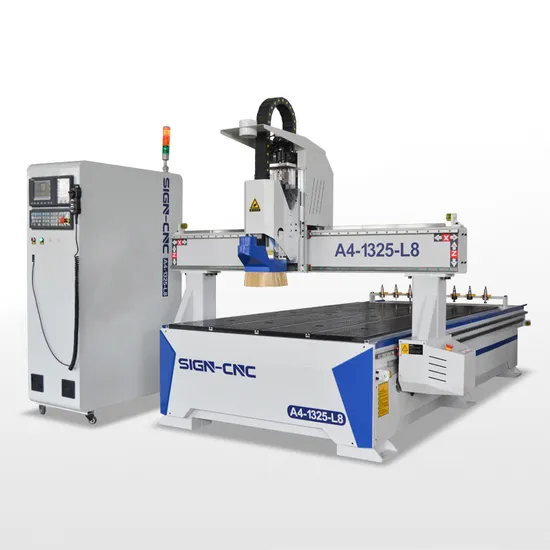

A4-1325-L8 Atc CNC Woodworking Machine Oil Mist Cooling for Cutting Aluminium

US$15,000.00
1-2 Sets
US$13,000.00
3-4 Sets
US$11,000.00
5+ Sets

Basic Info.

Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
CNC Style
Atc CNC Router
Working Area
1300*2500mm
Z Axis Height
300mm
Spindle
Atc Hqd 9kw Air Cooling
Inverter
Delta 11kw
Motor
Syntec 1000W Servo Motor and Driver
Reduce
Japan Shimpo
Control System
Syntec 60we
Working Table
Vacuum Table with T-Slot
Vacuum Pump Power
7.5kw
Rail
Tbi 25mm Square Guide Rail
Transport Package
Wooden Package
Specification
1300*2500mm
Trademark
SIGN
Origin
Jinan City, Shandong Province, China

Product Description

Product Description
A4-1325-L8 ATC cnc woodworking machine Oil mist cooling for cutting aluminium
Detailed Photos
Product Parameters
Model
A4-1325-L8
A4--1530-L8
A4-2030-L8
Working area
1300*2500mm
1500*3000mm
2000*3000mm
Z feeding
300mm
Frame structure
Steel casting-welding
Type of table cover
Vacuum table with T-slot
Vacuum pump
7.5kw air cooling
Z axis transmission
Ball screw and 25 square guide rails
X Y axis transmission
Taiwan 25 square guide rails + Helical rack
Max. Rapid Travel Rate
33000mm/min
Max. Working Speed
25000mm/min
Command Code
G code * .u00 * .mmg * .plt
Operating voltage
AC 380V/50Hz
Spindle power
HQD 9.0 KW
Tool Magazine
8 - 12
Type of cooling
Air cooling
Spindle Speeds
0-24000rpm/min
Drive motor type
Syntec 1000w servo motor and driver
operating system
Taiwan SYNTEC 60WE
Dust Collector
3kw with double bags
Lubrication system
Automatic
Supported software
Artcam software, Type3 software
Operating conditions
Humidity: 30% -75%, temperature: 15 - 45 degree
Warranty
Two year

Application and Sample
Mainly used in woodworking industry, advertising industry, craft industry, mold industry, electronics industry, construction industry, printing and packaging industry , Decoration industry, tombstone industry, crystal product industry and other
