Jinnfa CNC CNC Automatic Lathe, Row CNC Lathe Compact CNC Lathe Machine YK-32E

Product Description

YK25/32E/YK258/328/YK328DD/328DDY
YK series is designed specially for small and high precision parts with powerful processing capacity, stable quality and accuracy. It is the best choice for various manufacturers of automotive and motorcycle parts, electronic parts, instrument parts and medical equipment parts.


Product Parameters

Item	unit	YK-25E/32E	YK-258/328	YK-258DDY/328DDY
Max. swing over bed	mm	500	500	500
Max. turning diameter	mm	Ø100	Ø100	Ø100
Max. bar capacity	mm	Ø25/Ø32	Ø25/Ø32	Ø25/Ø32
Max. turning lungth	mm	100	100	100
Max. stroke X/Z	mm	178/267	178/258	156/148
X/Z axis traverse	M/min	15	15	15
Positional accuracy	mm	0.005	0.005	0.005
Decibel level	Db	80	80	85
Type of drive		Belt	Belt	Belt
Spindle motor	kw	3.7	3.7	3.7
Spindle speed range	rpm	50-6000	50-6000	50-6000
3-jaw chuck		4"(OP:collet)	4" (OP:collet)	4" (OP:collet)
Dia. of ball screw	mm	Ø25	Ø25	Ø25
Feed motor	kw	0.75	0.75	0.75
No. of gang type tool	pc	5	X	X
No. of turret tool	T	X	8	8
Turret indexing time	sec	X	0.3	0.3
3-position ER-16 face tool	kw	X	X	0.75
4-position ER-16 side tool	kw	X	X	0.75
Y-axis motor	kw	X	X	0.75
Slide way type		X	X	linear
OD tool size	mm	16	16	16
Boring tool size	mm	Ø20	Ø20	Ø20
Detection points of lubrication		2	2	2
Coolant motor	hp	1/4	1/4	1/4
Coolant tank capacity	L	80 (85%)	80 (85%)	80 (85%)
Hydraulic motor	hP	1	1	1
Hydraulic tank capacity	L	20 (85%)	20 (85%)	20 (85%)
Power requirement	KVA	10KVA	10KVA	10KVA
Voltage (transformer)x frequency		3/220V/60HZ	3/220V/60HZ	3/220V/60HZ
Voltage stability	kw	±10%	±10%	±10%
Machine dimensions	mm	1850*1500*1700	1850*1500*1700	1850*1500*1700
Weight	kg	1650	1700	1750

Our Advantages

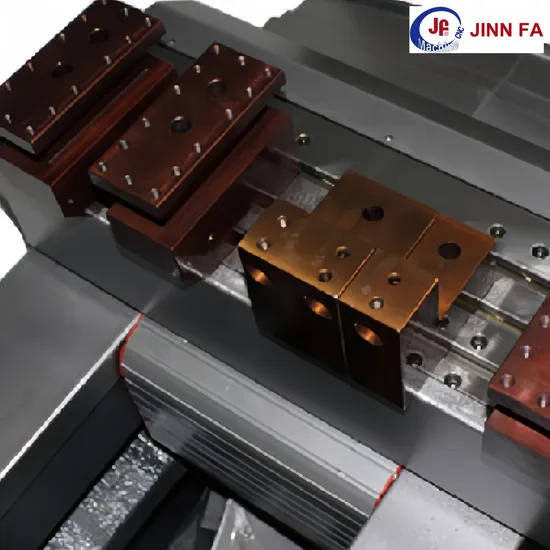

JINN FA Gang Tool CNC Lathe's Advantage:
1: Simplicity and Affordability
Gang tool lathes are often more cost-effective than turret lathes due to the simplicity of their tool change process. The lathe's standard axis servos and leadscrews handle all the work, whereas motorizing a turret can increase costs significantly.
2: Precision
Gang tool CNC lathes have an accuracy advantage over turret lathes due to their simpler moving parts, which reduces tolerance stack up and other types of slop. Additionally, the gang lathe is better suited for moving parts across shorter distances.
3: Rapidity
The tool change process in gang lathes is incredibly speedy as it utilizes slide motion for tool changes, eliminating the need for turret indexing.
4: Quick Installation
Gang tooling lathes offer fast setup times, with a simple set of tools and the ability to switch out a single block for a specific size twist drill allowing for a wide range of gang work to be accomplished.
5: Durability
Gang Tool lathes are known for their robustness, which is directly linked to their simplicity. With fewer moving parts, gang lathes are less prone to errors and malfunctions.

Company Profile
POLOMAC TECHNOLOGY(QING DAO)L.L.C
PROFESSIONAL CNC MACHINING MANUFACTURER & SUPPLIER
We have done a great deal to ensure the quality of our machines meets international standards. To this end, we have rigorous inspection procedures, which are conducted throughout all phases of the manufacturing process. This allows us to ensure the ultimate in quality. This commitment to quality and expert workmanship enables JINN FA to offer machines that fully meet customers' strict requirements of machine performance.
High Accuracy High Quality High Efficiency

JINN FA Machine industrial Co., Ltd. was established in 1976 as a Precision Metal Lathes Machine Tool Manufacturer. JINN FA designs and manufactures a wide range of auto lathes, cnn lathe machines, CNC machining centers and special purpose machines. Based on the company philosophy of technological innovation and leadership, JINN FA has spent great efforts in the research and development of advanced machine tools. Our precision cnc metal lathe machines have been widely sold to many countries in the world. Each metalworking lathe and machine is manufactured to the highest quality standards, with the highest versatility, providing the most competitive edge for parts machining. JINN FA machines are further enhanced by fine craftsmanship, which guarantees the user outstanding precision performance. Today JINNFA continues to labor at the technological forefront of the machine tool industry, maintaining a reputation for innovation design, state-of-the-art manufacturing techniques and rigorous quality control.
JINNFA continues to expand its service market, adhering to the company's belief of continuous technological innovation and technological leadership. In 2001, China POLOMAC TECHNOLOGY Co., Ltd. was established to enable every Jinnfa machine to serve the world.
A highly reputed manufacturer of CNC precision metal lathes, CNC machining centers and special purpose machines.
Certifications


Packaging & Shipping

FAQ
1.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A:FANUC, SIEMENS, MISTSUBISHI, GSK, SYNTEC. lt depends on your choice.
3:How can l choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We are a machine tool manufacturer that produces CNC lathes, CNC milling machines, vertical machining centers, Swiss style automatic lathes, grinders, and machine tool specific tools and precision parts OEM.
5: Can you come to our company for technical support?
A : Yes, we can provide on-site technical support, but travel and service fees will need to be paid.
6. What is your trade terms?
A:FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A:T/T, 30% initial payment when order, 70% balance payment before shipment; lrrevocable LC at sight.

---
