Blue Barrel Crushed Flakes Recycling Washing Machine Plastic Recycling Washing Line

Product Description

Product Description
PP PE LDPE HDPE waste plastic recycling machine is widely used to treat PP/PE plastic waste mixed material into clean film flakes,which include waste PP woven bags, plastic bags, plastic garbage, waste plastic mulch film. This production line is high automatic operating and save labor cost and low after maintenance. This pp pe recycling machine could be displayed "L" or "U" shape according clients' workshop.
The following is a standard structure of the PE PP film washing recycling machinery:
Belt conveyer--- crusher with water--- screw conveyer--- floating washer--- screw conveyer--- high speed friction washer--- high speed friction washer--- screw conveyer--- horizontal centrifugal dewatering machine --- drying system 1--- transition hopper--- drying system 2--- storage silo--- operating panel
The up is a standard structure of the line, we can adjust it to remove some parts or add some parts due to the situation of the material or customers' requirements.
We can design different pp pe ldpe hdpe waste plastic recycling machine according to your requirements:
1. Production capacity: 200kg/h,300kg/h,500kg/h 1000kg/h.
2. Material processed: PP/PE film, woven bags.
3: You can choose different devices according to your material. You can also purchase separate device based on your own conditions.
4: We providing turn-key project for you. Design-Product-Installment-Testing.
5. Superiority: Easy operation, high capacity, low energy consumption, safety, reliability, etc
Product Parameters

Machine	Model	Function	Capacity

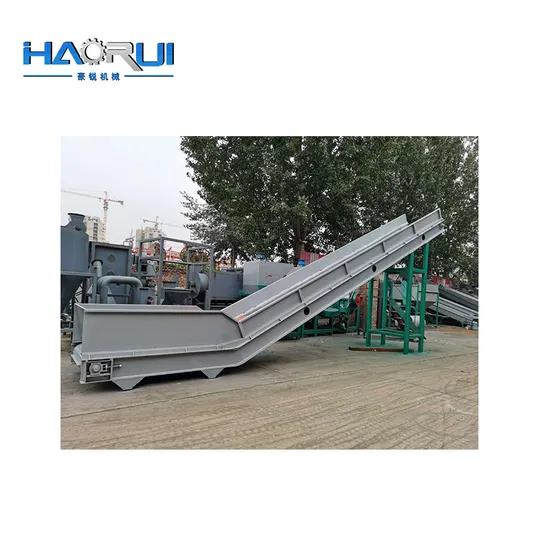

Conveyor Belt	800 Type	Transport the plastic waste to crusher	500kg/h
Plastic Crusher	800 Type	Crushing the waste plstic into flakes	500kg/h
Screw		Transport the plastic flakes to floating tank	500kg/h
Floating Tank		Rinse plastic flakes	500kg/h
Screw		Transport the plastic flakes to friction washer	500kg/h
Friction Washer	600 Type	Friction and washing the plastic flakes	500kg/h
Floating Tank		Floating washing plastic flakes	500kg/h
Screw Loader		Transport the plastic flakes to dewatering machine	500kg/h
Dewatering machine	600 Type	Dewatering from the washed plastic flakes	500kg/h
Storage Silo		storage plastic flakes	500kg/h

Detailed Photos
