High Performance Shandong Zdqd Rotary Carriers Clamp Wood Panel Compose Carrier Machine

Product Description

Technical Paremeters

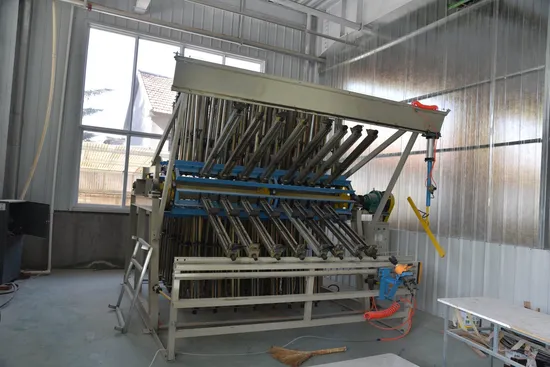

MJ2500-14/MJ2500-20 Rotary Clamp Carrier

Model	MJ2500-14	MJ2500-20
Max. processing length	2500mm	2500mm
Max. processing width	1250mm	1250mm
Processing thickness	10-90mm	10-90mm
Section(row) quantity	14 pc	20 pc
Clamps quantity per section	6/8 pc	6/8 pc
Hydraulic gun quantity	1 pc	1 pc
Power	5.1KW	5.1KW
Hydraulic pressure	0.8Mpa	0.8Mpa
Installation Size	4500*3800*3650 mm	5000*5500*3650 mm
Packing Size	3800*2200*2200mm	5500*2200*2200mm
Weight	4800kg	6000kg

Product Details

Heavy duty and wide body, Easily supports overweight wood
Bracket----25#GB channel steel
Beam-----GB L75*50*8 angle steel
Front and rear axles---GB round steel
The overall material of the clamps carrier is large and heavy,fine workmanship,and there are many humanized designs. Simple, safe and efficient operation. The large shaft sprocket is 530mm diameter forged steel .
The clamp is processed by CNC machine with high precision, wear resistance and strong interchangeability.
Adapt to wood of different thickness and width.
High-quality air gun/oil gun, sufficient power, reinforced and durable.
Electric brake reducer adopts imported high-precision bearings. Alternative to traditional belt deceleration.

Application

Company Profile

Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.
About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you.
