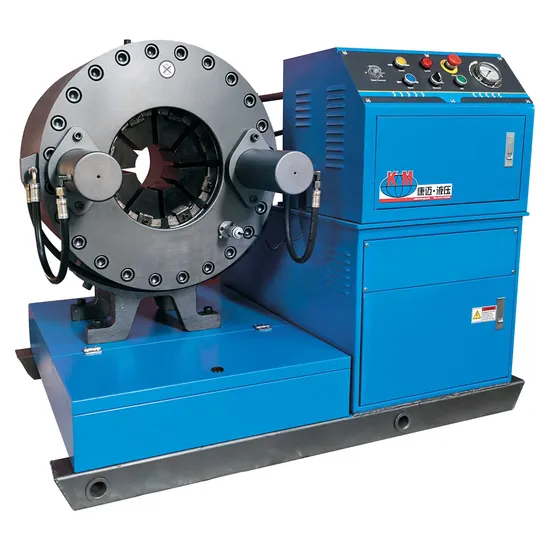

Hydraulic Composited Hose Tube Crimping Machine Suction Hose Crimper

Product Description

Product Description

Detailed Photos

Product Parameters

Model NO.	KM-91F-500
Crimping Range	3" -6" IV
Swaging Force	2400Ton
Standard Voltage&Motor	380V/50Hz/3PH; 5.5kW
Opening Without Dies	φ270mm
Opening	≥38mm
Open Time	≤ 4s
Close Time	≤ 22s
Capacity Of Oil Pump	35L/min
Systematic Pressure	30Mpa
Hydrauli Oil	Wnter: YB-N32; Summer: YB-N46
Volume Of Oil Tank	150L
Weight	880Kg
Volume (L*W*H)	1420*900*1000(mm)
No. of die sets	4 sets

Note: the voltage & die sizes can be customized according to your needs
Our Advantages

1).Low center of gravity, easy to operate;
2).Huge opening with large swaging force;
3).Mechanical seals with good tightness;
4). High efficiency, available for continuous operation
Applications

1).Suitable for high precision pressing for low and high pressure hose diameter, starting from 3" up to 6" internal hose pipe.
2).For oil pipeline, oil engineering maintaince.
Relative machines
Company Profile

1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil or broken. The reasons are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging or cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.

---
