2SN EN853 SAE 100r Two-Layer Rubber High Pressure Wire Braided Hydraulic Hose

Product Description

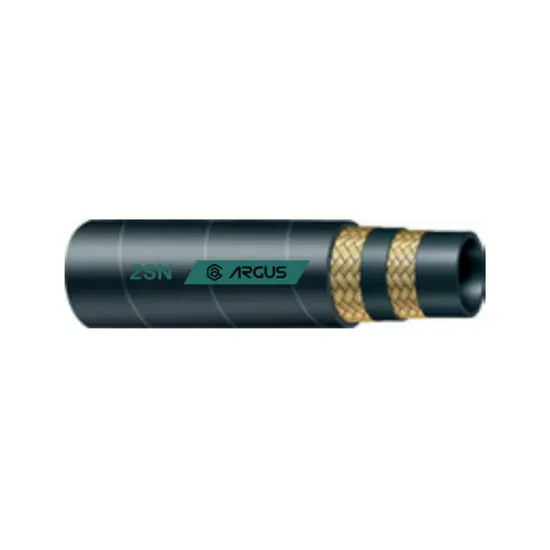

Product Description EN853 2SN is a two-layer high-pressure resistant braided hydraulic hose that is widely used in various industrial applications.EN853 2SN hydraulic hose is constructed using a two-layer design consisting of an inner rubber layer made of oil-resistant synthetic rubber and a reinforcement layer made of two high-tensile steel wire braids. The outer rubber layer is also made of oil and weather-resistant synthetic rubber that provides protection against abrasion, ozone, and UV rays. Features: High-Pressure Resistance: EN853 2SN hose is designed to withstand the high pressure of up to 400 bar. This makes it suitable for use in demanding hydraulic systems. Temperature Range: This hose can operate in a wide range of temperatures, from -40°C to +100°C. Flexibility: EN853 2SN hose is highly flexible, which allows it to bend easily without kinking or damaging the hose. Abrasion Resistance: The outer cover of this hose is made of synthetic rubber that provides excellent resistance to abrasion, which helps prolong the life of the hose.

Type	Hose Size			I.D		O.D		Max WP		Min B.P		Min B.R	WT
	Dash	mm	inch	Min	Max	Min	Max	MPa	Psi	MPa	Psi	mm	kg/m
2SN-03	-3	5	3/16	5.0	5.4	12.8	13.6	41.5	6020	165.0	23925	90	0.31
2SN-04	-4	6.3	1/4	6.5	6.9	14.4	15.4	40.0	5800	160.0	23200	100	0.39
2SN-05	-5	8	5/16	8.0	8.5	15.9	16.9	35.0	5075	140.0	20300	115	0.44
2SN-06	-6	10	3/8	9.5	10.0	18.2	19.2	33.0	4785	132.0	19140	130	0.54
2SN-08	-8	12.5	1/2	12.7	13.3	21.3	22.3	27.5	3990	110.0	15950	180	0.66
2SN-10	-10	16	5/8	15.9	16.7	24.5	25.7	25.0	3625	100.0	14500	200	0.80
2SN-12	-12	19	3/4	18.9	19.7	28.4	29.6	21.5	3120	86.0	12470	240	0.95
2SN-14	-14	22	7/8	22.0	22.8	31.4	32.6	17.5	2537	70.0	10150	280	1.04
2SN-16	-16	25	1	25.4	26.2	36.4	37.6	16.5	2390	65.0	9425	300	1.41
2SN-20	-20	31.5	1-1/4	32.0	32.8	45.8	47.0	12.5	1810	50.0	7250	420	2.15
2SN-24	-24	38	1-1/2	38.1	39.0	52.5	53.7	9.0	1305	36.0	5220	500	2.25
2SN-32	-32	51	2	50.8	51.8	65.1	66.7	8.0	1160	32.0	4640	630	3.00
2SN-40	-40	63	2-1/2	64.0	65.0	78.8	80.4	7.0	1015	28.0	4060	760	3.54
2SN-48	-48	76	3	76.0	77.0	93.8	95.4	4.0	580	16.0	2320	900	4.50
2SN-56	-56	89	3-1/2	89.0	90.0	105	107	4.5	655	18.0	2610	1100	5.00
2SN-64	-64	102	4	102.0	103.0	119	121	3.5	510	14.0	2030	1300	5.70

Detailed Photos

---
