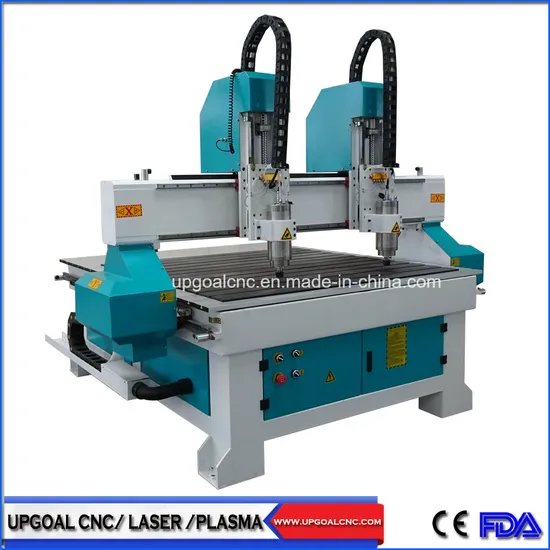

Double Head 3 Axis 1313 Model CNC Wood Router Machine

Product Description

Double Head 3 Axis 1313 Model CNC Wood Router Machine

Features
1.Welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.
2. Independent double Z-axis, each head can do same work or just one head working, much improving efficiency.
3. Transverse aluminum alloy T slot working table, better for materials fixing.
4.3.2KW water cooling spindle( China famous Hanqi brand) which is with stable performance, low noise and high torque, matched with high-performance frequency Inverter.
5. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adpot imported precision ball screws, tools feeded with more accuracy.
6. Helical gears Pinion with Racks type transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.
7. China famous Chuangwei brand 86BYGH450B steppermotor and Leadshine DMA860Hdriver for XYZ-axis, high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

8. DSP( RichAuto, A11E) offline control system with USB interface which is completely off from Computer. More Humanized design with Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle startup and stop automatically.

9.Semi-auto lubrication system more convenient for maintenance.
10. Auto tools calibration, precision for Z-axis 0 point setting.

11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
12. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.
Technical Parameters

Effective working area	1300(X)mm*1300(Y)mm*200(Z)mm
Materials	More thickness steel pipe welded machine holder bed& gantry
Z-axis number	2, independent
Working table	Transverse uminum T slot working table
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode	Stepper motor( 86BYGH450B,Chuangwei) and stepper driver( DMA860H, Leadshine)
Spindle motor	3.2kw water cooling, ER20
Spindle speed	0-24000rpm
Inverter	Sunfar
Voltage	AC 220V± 10%, 50/60Hz, single phase or AC 380V± 10%, 50/60Hz, three phases
Traveling speed	>25000mm/min
Engraving speed	>12000mm/min
Machine accuracy	0.03mm
Control system	DSP offline control system ( A11E, 3 axis, RichAuto)
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Lubrication system	Semi-auto
Tool calibration	Auto
Certificate	CE

Application
Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc
Reference Sample Photos
Reference Working Videos
https://upgoalcnc.en.made-in-china.com

Accessories & packing

For more information, just feel free to contact us!
Jinan Upgoal Mechanical Equipment Co.,Ltd
upgoalcnc.en.made-in-china.com, Mob: +86-13869132173
