Product Description
Product Description

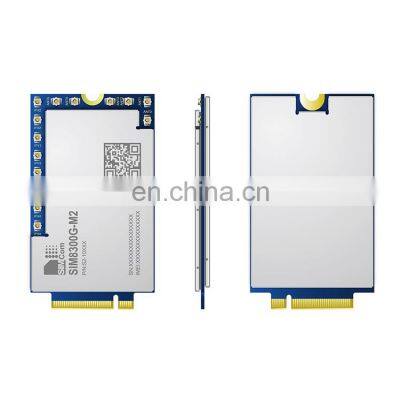

DescriptionSIM8300G-M2• The SIM8300G-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R15 5G NSA/SA up to 7Gbps data transfer.•It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.• SIM8300G-M2 adopts M.2 form factor, TYPE 3052-D3-B. AT commands of SIM8300G-M2 are compatible with SIM7912G/SIM8200-M2 series modules. •This also minimizes the investments of customers and enables a short time-to-market.• It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. •Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.Product Advantages• Standard M.2 interface• High throughput data communication• AT commands of SIM8300G-M2 are compatible with SIM7912G/SIM8200-M2 series modulesGeneral Features• Frequency Bands:5G mmWave: n257,n258,n260,n2615G Sub-6G: n1,n2,n3,n5,n7,n8,n12,n20,n25,n28,n40,n41,n66,n71,n77,n78,n79LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B66/B71LTE-TDD:B34/B38/B39/B40/B41/B42/B46/B48WCDMA:B1/B2/B3/B4/B5/B8GNSS:GPS/GLONASS/BeiDou/Galileo/QZSS• Supply voltage range: 3.135V~ 4.4V• Control Via AT Commands• Operation temperature: -30℃ ~ +70℃• Dimensions: 52.0*30.0*3.65mm• mmWave/Sub‐6G/LTE‐FDD/LTE‐TDD/WCDMAData• mmWave‐ Uplink up to 3 Gbps‐ Downlink up to 7 Gbps• Sub‐6G‐ Uplink up to 1 Gbps‐ Downlink up to 4 Gbps• LTE Cat20+‐ Uplink up to 200Mbps‐ Downlink up to 2 Gbps• HSPA+‐ Uplink up to 5.76Mbps‐ Downlink up to 42 MbpsOther Features• USB Driver for Microsoft Windows Win7/Win8/Win10• USB Driver for Linux /Android • RIL supporting for Android 6.0/7.0/8.0/9.0• RNDIS /NDIS/PPP/MBIM to Win8• Firmware update via USB• TCP/IP/IPV4/IPV6/Multi‐PDP/FTP/FTPS /HTTP/HTTPS/MQTTS/DNS/SSL3.0/TLS1.0/TLS1.2• DTMF (Sending and Receiving)• VoNR*/VoLTE/CSFB• FOTA Approvals• RoHS• REACH*• CE*• FCC*• GCF*Interfaces• USB2.0 • USB3.1 • UART• USIM (1.8V /2.95V)• PCM• I2C• GPIOs• PCIe Gen3• Antenna x 14Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
