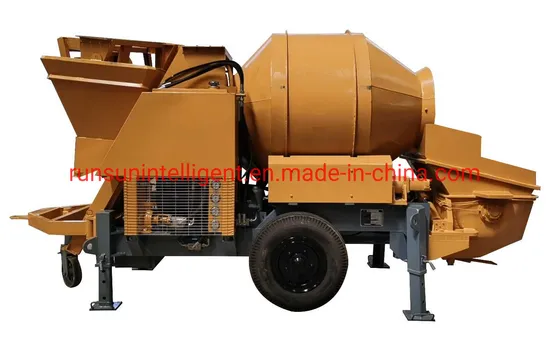

Hbt30m Small Trailer Electric Concrete Mixer Pump

Product Description

Technical Parameters

Model	HBT30R-M Diesel Engine	HBT30-M Electric Motor
Max. Theoretical Concrete Output (m³/h)	30	30
Max. Concrete Outlet Pressure (Mpa)	13	13
Concrete Slump (mm)	120-230	120-230
Max. Aggregate Size (mm)	pebble≤40, gravel≤30
Power (KW)	85KW	37KW
Speed (r/min)	2300	1480
Conveying Cylinder Diameter (mm)	110/1000	110/1000
Concrete Cylinder Diameter (mm)	180/1000	180/1000
High-Low Pressure Switch	√	√
Oil Tank Capacity (L)	300	300
Hopper Capacity (m³)	0.35	0.35
Fuel Tank Capacity (L)	100	100
Filling Height (mm)	1200	1200
Max. Theoretical Conveying Distance (Vertical Height/Horizontal Distance) (m)	150/600	80/400
Pipe Cleaning Mode	High-Pressure Water Washing
Overall Dimension (mm)	5800*2150*2550	4200*1950*1800
Total Weight (kg)	4500	3000
Discharging Capacity (L)	350	350
Feeding Capacity (L)	560	560
Production Rate (m³/h)	10-14	10-14
Mixing Drum Rotating Speed (r/min)	14	14
Maximum Aggregate Particles (mm)	60	60
Mixing Motor Power (KW)	5.5	5.5
Improving Motor (KW)	4.5Kw	4.5Kw
Water Pump Motor (KW)	0.55Kw	0.55Kw
Maximum Towing Speed (KW)	20Km/h	20Km/h

Main Components' Brand or Manufacturer:
HBT30-M CONCRETE MIXER WITH PUMP (Electric Motor)

Item	Brand or Manufacturer	Place of Origin
Motor 37kw	Jiangsu lieder	China
Main Oil Pump, K3V112	KAWASAKI	Korea
PLC	Mitsubishi	Japan
Oil Cylinder	Hunan XIELI	China
Concrete Cylinder	Wuxi Shuangyu	China
Hydraulic Hose	Manuli	Italy
Main Hydraulic Valve	BolSeen	Germany
Hydraulic oil - HML-46	Beijing CHANGCHENG	China
S Distribution Valve	RUNSUN	China
Glass Plate & Cutting Ring	Zhuzhou ZHENXIANG	China

HBT30R-M CONCRETE MIXER WITH PUMP (Diesel Engine)

Item	Brand or Manufacturer	Place of Origin
Diesel Engine, 85KW	Yuchai	China
Main Oil Pump, K3V112	KAWASAKI	Korea
PLC	Mitsubishi	Japan
Oil Cylinder	Hunan XIELI	China
Concrete Cylinder	Wuxi Shuangyu	China
Hydraulic Hose	Manuli	Italy
Main Hydraulic Valve	BolSeen	Germany
Hydraulic oil - HML-46	Beijing CHANGCHENG	China
S Distribution Valve	RUNSUN	China
Glass Plate & Cutting Ring	Zhuzhou ZHENXIANG	China

RUNSUN HBT30 Diesel Engine Concrete Mixer Pump
HBTRM Series Mobile Concrete Mixer with Pump driven by diesel engine or electric motor is combined by the concrete pump and the mixer together, Concrete Mixer pump uses a fully hydraulic pumping system and is characterized by large concrete filing quantity and stable performance as well as smaller volume and smaller operating space. Concrete mixing trailer pump is applicable to medium and small size house constructions ranging from 2 floors to 12 floors as well as other various projects such as mine caves, road and railway tunnels, water conservation, hydropower engineering, and slope protection for geological disasters. Technical Advantages
1. Perfect combining concrete mixing machine with conveying pump in one machine.
2. Concrete pump is engineered with the latest differential pressure induction control technology.
3. Hydraulic double-cylinder piston system, more stable concrete flowing and pumping.
4. Simplified working procedure, easy operation, and maintenance, improved working efficiency
5. Advanced hydraulic system.
6. Improved Hopper, high effectivity.
7. Powerful mixing ability.
8. SYMC intelligent controller, high-speed and reliable operation.
9. More reliable redundant control design.
10. Compact structure, flexible to operate.
11. Longer serve life.
12. Competitive factory price.
13. Mortar stop pressure relief valve, pumping cleaning ball washing, more secure and faster cleaning operation.
14. Adaptive gear adjustment technology, and smart matching of operating conditions.
15. Automatic and intensive lubrication system ensures effective lubrication during the operation.
16. High reliability and wear resistance components, imported brand main hydraulic components.
Working Applications Fields:
