Basic Info.
Voice Service
With Voice Service
Installation
Wall-Mounted
Certification
RoHS, CCC, FCC, CE
Lens
1.7mm Wide Angle Lens
Transport Package
Neutral Packing
Trademark
HICOTEK/OEM/ODM
Production Capacity
80000PCS/Month
Product Description
Features:

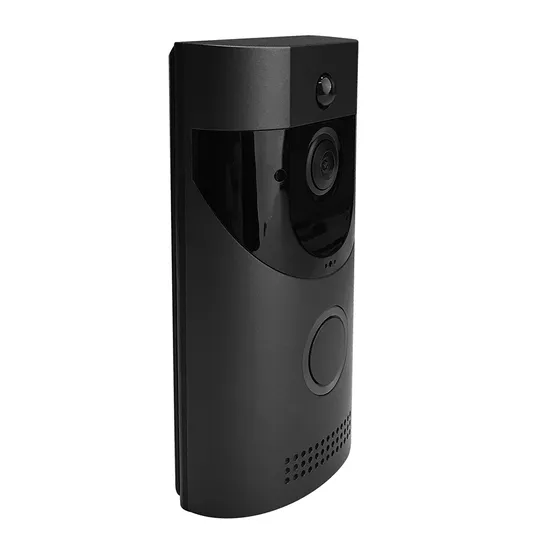

Waterproof Wireless WIFI Smart Doorbell Camera
1.7mm Wide Angle (166°) Lens
IR LED: F8*6pcs, IR Range: 8 M
PIR Motion Detection, WDR
Support SD Card (Max 32GB)
WIFI Auto Match, Phone App For iPhone and Android
Push Alarm to Smart Phone, Two-way Audio
Support Cloud Storage
PSU: AC/DC 8-24V; 2x 18650 Battery
Water Resistant Rate:IP67
Model NO. | WIP-HADB30M10
|
Chipset |
Image Sensor | 1/4"OmniVision |
Main processor | Hi3518E |
Resolution | 720P |
Effective Pixels | 1280(H)*720(V) |
Compression | H.264/JPEG/AVI/MJPEG |
TV System | PAL/NTSC Adjustable |
Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
S/N Ratio | ≥52Db |
Scanning System | Progressive |
Lens |
Focus Length | 1.7mm (166°Wide-angle) |
Focus Control | Fixed |
Lens Type | Fixed |
Pixels | 2MP |
Night Vision |
Infrared LED | IR LED: F8*6pcs (850nm) |
Infrared Distance | 8M |
IR Status | Under 10 Lux By CDS |
IR Power On | CDS Auto Control |
Network |
WIFI | 2.4GHz WiFi (IEEE 802.11 b/g/n) |
P2P | YES |
Red LED Blink | Power OK, Waiting for WiFi Connection |
Blue & Red Blink | WiFi Setting Succeed, Waitting for APP Connection |
Blue LED Blink | Power & Network OK, Device in Working Status |
LED OFF | No Power / StandBy Mode |
OS Require | Ios (V10.0 or Above) or Android (V5.0 or Above) |
SD Card | Support Max 32GB TF-card |
Cloud Storage | Yes |
Audio Input | Internal Microphone (38dB) |
Pickup Range | 5 Meters |
Audio Output | Internal Speaker (38dB) |
Audio Type | Two-way Audio with Noise Cancellation |
Video Quality | 1280*720@25fps |
Video Mode | Manual Video; Alarm Video |
Smart Phone | iPhone, Android |
Camera Features |
Day/Night | Color/ B&W (Auto ICR ) |
BLC | Support |
AGC | Support |
WDR | Support |
Motion Detection | Smart PIR Sensor (Sensitivity Editable) |
Device Wakeup Time | Within 600ms |
General |
Housing | IP67,Waterproof for Outdoor Use |
Bracket | YES |
Operation Temperature | -20ºC ~ +55ºC RH95% Max |
Storage Temperature | -25ºC ~ +60ºC RH95% Max |
Power Type | Hardwire AC/DC 8V-24V or Rechargeable 18650 Battery |
Consumption | Working Mode: 170mA Standby Mode: 200μA |
Dimension | 67(L)*38(W)*136(H)mm |
Weight | 450g |
>>
