Hone Big Batch Food Grade Cream Cheese Mixer/ High Shear Heating Homogenous Mixing Tank

US$15,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HVE-BLT
Application Area
Daily Chemical, Food
Certification
CE
Condition
New
Heating Method
Electric / Steam Heating
Mixing Drum Shape
Disc
Stirring Type
Spiral
Warranty
1 year
Working
High Speed Mixer
Range of Spindle Speed(r.p.m)
1 - 65 r.p.m
Power (Kw)
50kw
Function
Mixing, Homogenizing, Emulsifying
Max. Loading Volume (L)
100 L
Weight (Kg)
1200 Kg
Voltage
220-480V/50-60Hz 3phase Customize
Stirrer Type
Frame Oar Wall Scraper Mixer
Control
Button / PLC Touch Screen Control (Option)
Discharge
Tilting Discharge / Positive Discharge
Jacket
3 Layers, Double Jacket
Homogenizer
0-3600rpm
Mixer Type
Homogenizer
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Plywoode Case Packing
Specification
3260*2350*2500mm
Trademark
Hone
Origin
China
HS Code
8479820090
Production Capacity
30sets/Mouth

Product Description

Recommend Product Product DescriptionHone Big Batch Food Grade Cream Cheese Mixer/ High Shear Heating Homogenous Mixing Tank

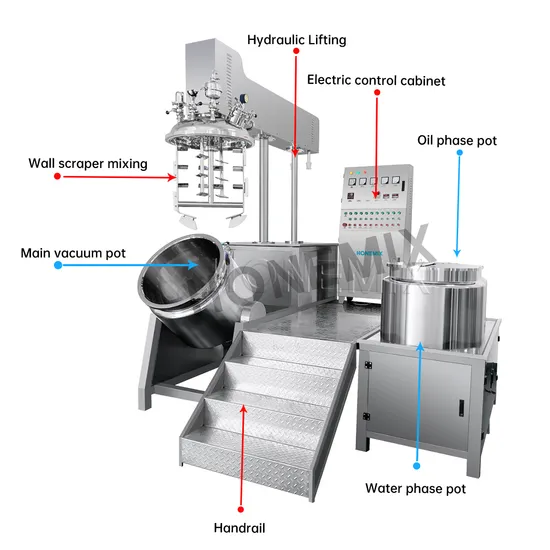

Vacuum emulsifying mixer machine consist of Water and Oil pot, Main emulsifying tank, Vacuum system, Tilting discharge system, Hydraulic lifting system(OPTION), Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics products.
Detailed Photos Lid PartsMan-HoleMaterial suction inlet
Vacuum presssure gauge
Vacuum port
Vent filter
Positive pressure inlet
Perfume hopper
CIP spray ball
LED Light
Sight window Water and Oil PotMachine equipped a set of water and oil potWater pot capacity: 240LOil pot capacity: 150LPower: 0.75KW, Siemens motor, 1440RPMElectric heating by Water or Conduction OilMixing: High shearing Disperser plates with baffle on the wallHalf open hinged lid for easy operationFrame Wall Scrapper MixerSUS316L Wall scrapper mixerPTFE scraperFixed propeller45 degree blades on opposite angles to make sure mixture completeSiemens motor drive0-65rpm with variable speed controlTWO WAYS wall scrapper mixer HELIX scrape mixer(OPTION)
