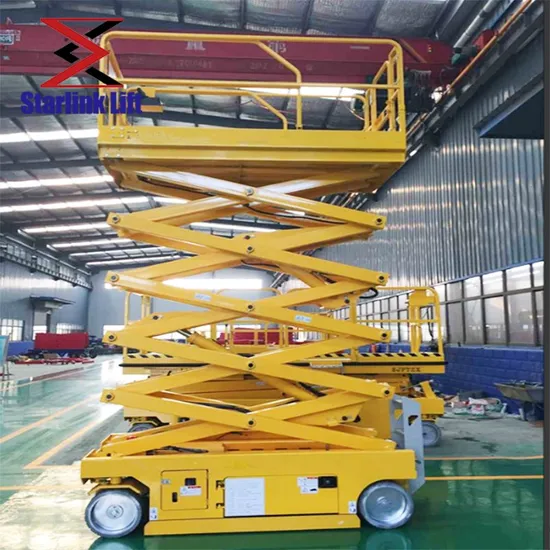

Small Mini Self Propelled Electric Scissor Lift

Product Description

Product Description
The self-propelled hydraulic scissor Lift has an automatic walking function. It can be raised and lowered freely under different working conditions without the need for external power supply or external power traction. The walking and steering of the equipment can also be completed by only one person.
Self -propelled scissor lift id mainly used to lift workers to high place to repairs,maintenance ,cleaning,installation and so on. People could drive the lift easily to the right working area.
Product Parameters

Model	SLZX06SP	SLZX08NP	SLZX06	SLZX08	SLZX10	SLZX12	SLZX14
Rated Load Capacity	230kg	230kg	450kg	450kg	320kg	320kg	230kg
Extension Platform Capacity	113kg	113kg	113kg	113kg	113kg	113kg	113kg
Maximum Workers Numver	2	2	2	2	2	2	2
Working Height	7.8m	10m	8m	10m	12m	13.8m	15.7m
Platform Height	5.8m	8m	6m	8m	10m	11.8m	13.7m
Overall Lenght	1860mm	2480mm	2480mm	2480mm	2480mm	2480mm	2850mm
Overall Width	768mm	820mm	1190mm	1190mm	1190mm	1190mm	1250mm
Overall Height (Rails up)	2180mm	2320mm	2200mm	2320mm	2450mm	2570mm	2635mm
Overall Height (Rails down)	1840mm	1990mm	1660mm	1780mm	1910mm	2030mm	2100mm
Platform Size(LxW)	1670x740mm	2270x810mm	2270x1120mm	2270x1120mm	2270x1120mm	2270x1120mm	2640x1120mm
Platform Extension Size	900mm	900mm	900mm	900mm	900mm	900mm	900mm
Ground Clearance (Stowed)	83mm	100mm	100mm	100mm	100mm	100mm	100mm
Ground Clearance (Raised)	16mm	19mm	19mm	19mm	19mm	19mm	19mm
Wheel Base	1085mm	1895mm	1895mm	1895mm	1895mm	1895mm	2230mm
Turming Radius (Inside)	0m	0m	0m	0m	0m	0m	0m
Turming Radius (Outside)	1.64m	2.2m	2.2m	2.2m	2.2m	2.2m	2.7m
Lifting Motor	24V/3.3Kw	24V/3.3Kw	24V/3.3Kw	24V/3.3Kw	24V/3.3Kw	24V/4.5Kw	24V/4.5Kw
Travel Speed (Stowed)	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h
Travel Speed (Raised)	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h
UP/Down Speed	20/20sec	30/25sec	24/34sec	36/35sec	60/40sec	60/50sec	82/60sec
Battery	4x6V/225Ah	4x6V/225Ah	4x6V/225Ah	4x6V/240Ah	4x6V/240Ah	4x12V/300Ah	4x12V/300Ah
Charger	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A	24V/25A
Gradeablity	25%	25%	25%	25%	25%	25%	25%
Max.Working Slope	2.3.	1.5.3.	1.5.3.	1.5.3.	1.5.3.	1.5.3.	1.5.3.
Tyre	Φ305x100mm	Φ381x127mm	Φ381x127mm	Φ381x127mm	Φ381x127mm	Φ381x127mm	Φ381x127mm
Overall Weight	1460Kg	2260Kg	2170Kg	2360Kg	2640Kg	2980Kg	3600Kg

Detailed Photos
Tilt Sensing
Make sure the device is level and can be raised and lowered normally
Tires
Polyurethane wheels, low noise, no resistance when walking, and no damage to the ground
Countertop
Extended extension table, extra large work surface, increased safety factor
Lower Control
multiple control methods, adding a power key, and retaining power storage during placement
Hand Control
using an integrated computer control handle, which can directly control the lifting and walking of the equipment
Power Supply
Qiu Jian battery is used, with sufficient storage capacity and strong equipment operation endurance.

Installation Example
Company Profile
Shandong Starlink Heavy Industry Machinery Co., Ltd. is located in Jinan City, Shandong Province, China, is a professional production and development of various lifting platform enterprises, the main products are Hydraulic Scissors lift, Trailer boom lift, Home Lift and so on. Over the years, our company to "quality first, customer first, integrity-based" as the business philosophy, has become one of the leading domestic hydraulic equipment manufacturers.
All products produced by our company are in line with national and industry standards, and has passed ISO9001-2000 quality system certification, product quality and performance are recognized, products not only sell well in China, but also exported to more than 50 countries in the world, mainly distributed in Europe, the United States, the Middle East, Southeast Asia and South Africa. All products an be designed and manufactured according to your requirements, welcome to sample customized.
Packaging & Shipping

Exhibition

---
