Rubber Sheet Batch off Cooler Batch off Cooling Machine for Cooling Rubber Sheet

Product Description

MYF-Your reliable machinery supplier for motorcycle tire manufacturing process!

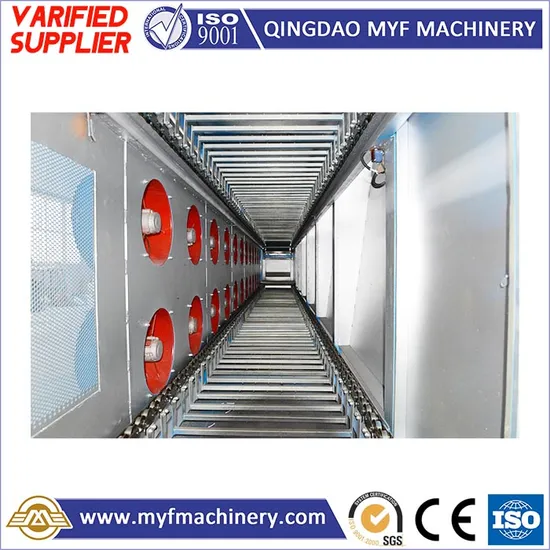

Product Description Festoon batch off cooling machine is used for cooling rubber sheet from open mixing mill in mixing center. It is applicable for tire factory, conveyor belt factory, rubber product factory.
Customize design available for different application. Our Advantages There are two structure types: overhead and flat-bed type. The mainframe is composed of splicer, printing, slitter, isolation cooling, lifting device, hanging strip cooling, auto wig wag section, weighing, handrail, platform and supporting bracket etc.The high disposition batch-off line has hydraulic auto wig wag section, which can bundle the rubber strip tidily; Three working positions for automatic raw material feeding and outputting tray; Auto rubber collecting device; Automatic cutting device; High automation.
Optional equipment:
1. Auto feeding.
2. Auto cutting.
3. Auto dipping.
4. Auto lifting.
5. Auto gripping.
6. Auto wig-wag.
7. Auto cutting.
8. Auto weighing.
9. Auto stacking.
10. Auto palleting.

Model	XPG-600	XPG-800	XPG-900
Rubber sheet width	Max 600mm	Max 800mm	Max 900mm
Rubber sheet thickness	3~12mm	3~12mm	3~12mm
Speed	Max 40m/min	Max 40m/min	Max 40m/min
Cooled temperature	Ambient+5ºC	Ambient+5ºC	Ambient+5ºC

---
