CNC Horizontal Spiral Groove Milling Machine

Product Description

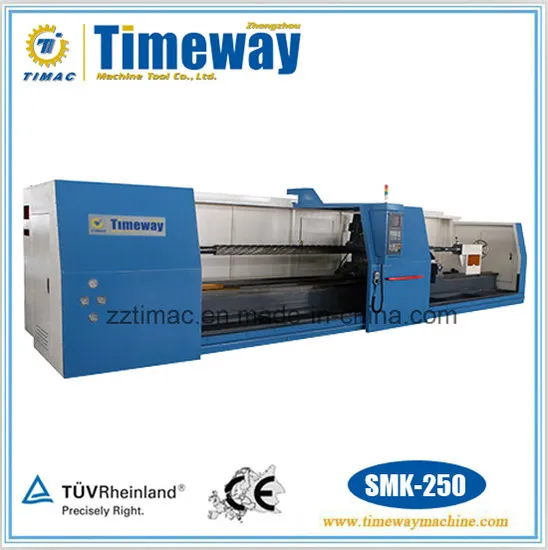

CNC Horizontal Spiral Groove Milling Machine
SMK-250
Features:
Adopting famous opened CNC system with four axes combined action.
Adopting large span and high strength cast iron and flat bed so that the machine has a high rigidity and good property of anti-vibration.
The milling head is driven by spindle motor, and the machine adopts the transmission of synchronous belt and gear and frequency converting motor so that the machine has enough power and good rigidity.
Z-axis adopts precise ground slant rack transmission, electric double gap-eliminating structure so as to guarantee the position accuracy.
The workpiece clamping device has a special hydraulic structure so as to avoid decreasing process accuracy and unable adjustment of the workpiece due to the abrasion of the clamping blocks.
Application:
The machine is specially designed for processing the rotor parts of screw drilling stems in the oil field industry, adopting hard alloy multi-tooth cutter head, the machine can perform envelope machining of the spiral surface of the workpiece by once formed, it is the main production equipment in this industry. The machine can also mill all kinds of screws with irregular section in other industries.
Technical Parameter

Specification	Unit	SMK-250
Max. diameter of workpiece	mm	Φ250
Min. diameter of workpiece	mm	Φ40
Max. length of workpiece	mm	8000
Helix angle of milling head	deg	-85°~+85°
Helix direction	-	any
Max. cutter head diameter	mm	Φ320
Min. cutter head diameter	mm	Φ290
Turning speed of tool	rpm	0-400
X-axis feed speed	mm/min	0-4000
Y-axis feed speed	rpm	0-20
Z-axis feed speed	mm/min	0-4000
Z-axis rapid feed speed	mm/min	6000
CNC system	-	SIEMENS
X/Y-axis servo motor torque	N.m	27
Z-axis servo motor torque	N.m	11
A-axis servo motor torque	N.m	11
Milling head motor	kw	7.5kw, 1000rpm.
Diameter of four-jaw chuck	mm	Φ320
Machine dimension(LxWxH)	mm	13090x2340x2260
Machine weight	kg	19000

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
