CE Approved Homogenizer Blender with Clamp Connection

Product Description

CE Approved Homogenizer Blender with Clamp Connection by Zhejiang Huatai Bonve Pumps Co., Ltd. Ideal for high shear mixing, emulsifying, and homogenizing.
Product DescriptionZhejiang Huatai Bonve Pumps Co., Ltd.
The Bonve high shear emulsifying and homogenizing mixer is a versatile product that combines mixing, dispersing, crushing, dissolving, refining, depolymerizing, homogenizing, and emulsification. This series of products simplifies traditional production processes, significantly improves production efficiency, and enhances product quality. Homogenization is crucial for creating high-quality products that meet consumer expectations, leading to improved taste, texture, and consistency, ultimately boosting sales and customer satisfaction.
Key Features:
100% dispersive shear
Quick dissolution of solids without agglomeration
No dead ends, ensuring high evenness
Time-saving, high-efficiency, and low-consumption
Simple operation, convenient maintenance, and supports automatic control
The Bonve homogenizer mixer finds applications in various industries such as petrochemicals, refinery chemistry, consumer chemicals, biology pharmaceutics, food processing, paper-making, environmental protection, and more.
Working principleZhejiang Huatai Bonve Pumps Co., Ltd.
The main components of our innovative pump design are the stators and rotors. Through the high-speed rotation of the rotors, centrifugal and fluid forces are generated, allowing the stators to exert powerful shearing, centrifugal pressing, breaking, fluid friction, and turbulent forces on the materials being processed. This results in rapid refinement, homogenization, dis-aggregation, and emulsification of solid, fluid, and gas phase materials. The continuous repetition of this process ensures the production of stable and high-quality products.
Product line
Bonve Emulsifying and Homogenizing Shear Pumps
Zhejiang Huatai Bonve Pumps Co., Ltd.
FHM1 Series
The FHM1 series features a single-stage rotor and stator, ideal for cyclic processing in medium and small batch production. It is designed for short-distance transmission, homogenization, and emulsification.
FHM3 Series
The FHM3 series is an advanced version of the FHM1 series, with a three-stage rotor and stator configuration. This series is perfect for applications requiring rapid and thorough homogenization and emulsification, suitable for medium to large-scale production cycles.
(The pump with 2-stage rotor and stage can be customized upon request)
Product ParametersFHM1 series

Model	Electrical Power (Kw)	Rotation Speed (r/min)	Capacity (m3/h)	Pressure (Mpa)	Diameter of inlet/outlet
FHM1/100	2.2	2900	0-3	0-0.05	DN40/40
FHM1/120	4	2900	0-4	0-0.1	DN40/40
FHM1/140	5.5	2900	0-5	0-0.1	DN50/40
FHM1/165	7.5	2900	0-8	0-0.15	DN50/40
FHM1/185	15	2900	0-15	0-0.15	DN65/50
FHM1/200	22	2900	0-20	0-0.15	DN80/65
FHM1/220	30	2900	0-30	0-0.15	DN80/65
FHM1/240	37	2900	0-50	0-0.2	DN100/80

FHM3 series

Model	Electrical Power (Kw)	Rotation Speed (r/min)	Flow rate (m3/h)	Discharge pressure (Mpa)	Diameter of inlet/outlet
FHM3/100	5.5	2900	0-3	0.1	DN40/40
FHM3/120	7.5	2900	0-4	0.15	DN40/40
FHM3/140	11	2900	0-5	0.2	DN50/40
FHM3/165	18.5	2900	0-10	0.3	DN50/40
FHM3/185	30	2900	0-20	0.4	DN65/50
FHM3/200	45	2900	0-30	0.5	DN80/65
FHM3/220	55	2900	0-40	0.5	DN80/65
FHM3/240	90	2900	0-60	0.6	DN100/80

Product Description:

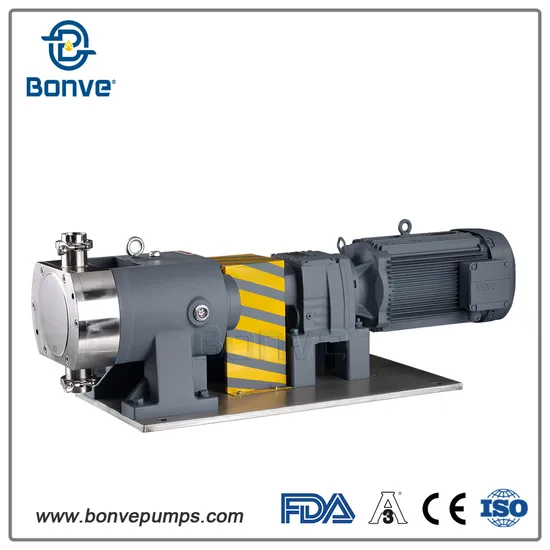

Zhejiang Huatai Bonve Pumps Co., Ltd. offers a high-quality lobe pump designed for products with poor liquidity or requiring a higher discharge pressure. The pump is recommended for installation before the homogenizer for efficient transferring.
Key Features:
Tested by water for reliability
Port size customizable
Flange connection standard, clamp and thread options available
Motor matched with Siemens or equivalent brand
Standard 3ph/380V/50Hz motor
Standard MOC: SS304, with optional SS316, 316L, and others
150°C (302°F) anti-heat seal
Disclaimer: Bonve reserves the right to change specifications without prior notification.
Dimensions
Applications
For selecting the right model of our CE Approved Homogenizer Blender with Clamp Connection, please complete the table below and send it to Zhejiang Huatai Bonve Pumps Co., Ltd.

Your industry/application
Processed medium's name
Medium's feature	Sanitary ( ) Corrosive ( ) Poisonous ( )
Medium's proportion	Liquid % ____ Density____ Viscosity____ PH value____ Solid % ____ Solid size ___
Processing requirement	Mixing dissolving ( ) Dispersed suspension ( ) Emulsification ( ) Homogeneity ( ) Reaction ( ) Powder liquid mixing ( )
Working type	Continuous circulation work ( ) Continuous non-circulation work ( ) Batch type ( )
Working temperature
Particle size	Before processing _______ After processing ________
Handling capacity required
Delivery head/pressure required
Vessel's dimension
Existing pipe size and connection type
The existing process equipment and the existing problems

About usZhejiang Huatai Bonve Pumps Co., Ltd. is a leading Chinese manufacturer specializing in ROTARY LOBE PUMPS and HOMOGENIZER MIXERS. Our ISO9001:2015 approved company offers customized pumping and mixing solutions to meet our customers' production needs. With over 20 years of expertise, we design, research, and produce high-quality pumps. When you choose a Bonve pump, you benefit from our engineering expertise and extensive application knowledge in industries such as food, chemical, pharmaceutical, and cosmetics.
As of 2021, we hold more than 30 patents, including invention and utility model patents. Our state-of-the-art facilities include a fully automated pump testing system, 98 advanced CNC machines, and various precision inspection equipment. Bonve pumps are trusted and utilized in over 40 countries worldwide, with more than 5000 companies and 60000 units of our pumps in operation. Many companies consider Bonve Pumps as the "standard" equipment for their manufacturing processes. We are eager to collaborate with you as your partner of choice.
