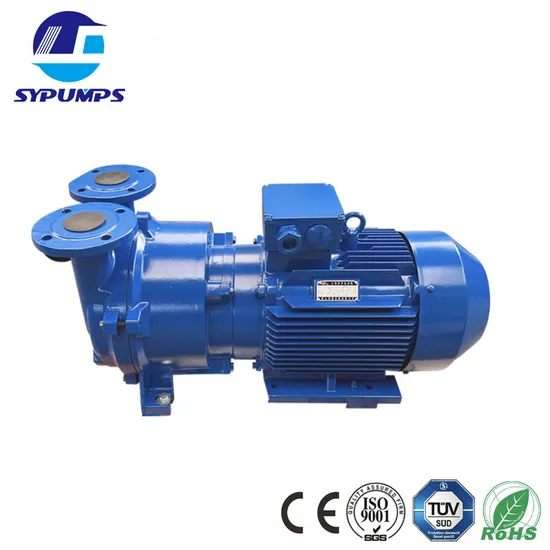

2BV Water Ring Vacuum Pump, Stainless Steel Corrosion Explosion Proof Vacuum Treatment Equipment Pump

Product Description

Shenyang liancheng pump co.,ltd.
============================
Vacuum Pump--water ring vacuum pump
The 2BV series vacuum pump is an upgraded product based on the traditional vacuum pump in China, which adopts new technology. It adopts the coaxial direct connection design of the machine and the pump, which is highly reliable, easy to install and maintain, and has a volume of 30% less than the traditional vacuum pump. It runs smoothly, has a noise of less than 62 decibels, has self-priming capability, and is easy to operate. Because of the use of mechanical seals, leakage is eliminated. 50% of the working fluid of the steam-water separator equipped with the pump can be recycled, which reduces pollution and reduces operating costs. The pump uses a bronze impeller to improve the corrosion resistance of the pump. According to user requirements, using stainless steel, the pump will operate normally in harsh environments. Therefore, it is widely used in chemical, pharmaceutical, food, paper and steel industries.
The rotating part of 2BV, the impeller, rotates to make the working fluid form a liquid ring in the oval pump. At this time, the working fluid acts as a sealing medium, a compression medium and a cooling medium at the same time. There is no wear and no lubrication. Because the impeller is eccentric relative to the rotating liquid ring. The liquid reciprocates in the space between the blades, which sucks and compresses the pumped medium just like the movement of a piston in a cylinder. In the exhaust phase, the liquid ring gradually moves away from the wheel tyres, expelling the pumped medium from the exhaust port in the axial direction. In the suction stage, the impeller gradually moves away from the wheel tyres, sucking the pumped medium in the axial direction from the suction port. Continuous injection of supplementary liquid to compensate for the liquid carried away by the exhaust gas.
All the design features of the 2BV series make it basically maintenance-free. 100%, oil-free design, no need to use oil, and of course no need to replace oil filtering equipment. Under normal use, the bearings only need to be greased once every 5 years on average. Under normal operating conditions, 2BV mechanical seals do not need to be adjusted regularly like packing seals.
Performance range
Parameter Pumping capacity 27~ 500m3 /h,
Power 0.81KW ~ 15KW,
Others see the product selection page for details

Ultimate Pressure:	33hPa
Capacity:	27-500m3/h
Voltage:	220V/380V/410V/460V/High Voltage ,vlotage can OEM
Frequency:	50Hz/60Hz

Model	Max gas capacity		Extreme pressure hPa(MPa)	Speedr/min	Motor power Kw	Capacity L/min	Suction and exhaust diameter mm	Weight Kg	Noise dBA
	m3/min	m3/h
2BV2 060	0.45	27	33 (-0.098)	2890	0.81	2	G 1″	31	62
2BV 2061	0.86	52		2890	1.45	2	G 1″	35	65
2BV2 070	1.33	80		2890	2.35	2.5	G 11/2″	56	66
2BV 2071	1.83	110		2890	3.85	4.2	G 11/2″	66	72
2BV2060-Ex	0.45	27		2890	1.1	2	G 1″	39	62
2BV2061-Ex	0.86	52		2890	1.5	2	G 1″	45	65
2BV2070-Ex	1.33	80		2890	3	2.5	G 11/2″	66	66
2BV2071-Ex	1.83	110		2890	4	4.2	G 11/2″	77	72
2BV5 110	2.75	165		1440	4	6.7	50	103	63
2BV5 111	3.83	230		1440	5.5	8.3	50	117	68
2BV5 121	4.66	280		1440	7.5	10	65	149	69
2BV5 131	6.66	400		1440	11	15	65	205	73
2BV5 161	8.33	500		970	15	20	80	331	74
2BV6 110	2.75	165		1440	4	6.7	50	153	63
2BV6 111	3.83	230		1440	5.5	8.3	50	208	68
2BV6 121	4.66	280		1440	7.5	10	65	240	69
2BV6 131	6.66	400		1440	11	15	65	320	73
2BV6 161	8.33	500		970	15	20	80	446	74

This is just part of parameter,for full ,pls send us email.
Accessory
Main feature --Machine pump coaxial or direct connection design, saving space, easy installation, easy maintenance. --With mechanical seals as standard, leaks are completely eliminated. --Equipped with cavitation protection interface, such as working under the ultimate pressure, open the cavitation protection valve (or connected with the separator), can eliminate the cavitation sound before the maximum suction effect, and protect the pump. --If the flow parts are all made of stainless steel (can be SUS304, SUS316L, 2205, 2507, titanium, etc.), acid and alkaline gases can be removed and work in a more demanding environment. --Unique flexible exhaust port design, which does not produce excessive compression, ensures optimal operating efficiency throughout the vacuum range.
Material select
According to different medium liquids, normally Cast iron,304,316,2205,2507,titanium.
More pictures
For more details, pls contact with us!

---
