Economic Type Double Wall Heat Insulation Paper Cup Sleeve

Product Description

Product Description
Brief Description
KH-SC108 double wall paper cup outer machine is a multi-functional automatic veneer equipment. It passes through continuous processes processes such as multi-row automatic paper feeding, ultrasonic welding, robotic paper tube transfer, oil filling, bottom folding, knurling, cup falling, servo glue feeding, cylinder two-stage blanking and fitting, pressing, and cup/bowl unloading veneer. This machine adopts frequency conversion stepless speed regulation; adopts light-controlled non-contact switch to detect abnormal, realize automatic shutdown of failure, protect each part of the machine from collision, and improve the stability and life of the machine. The holding tube station adopts left an right independent cams to drive the left cup clamps. There is no noise during work, and the holding tube is stable and reliable. It is the latest domestic technology.
Sample
Product Parameters

Model	KH-SK108 High Speed Intelligent Paper Cup Sleeve Machine
Cup forming size	8-16 oz Top diameter: ф70-95mm Height: 70-137mm Bottom diameter: ф50-75mm Bottom depth: 5-12mm
Paper thickness and type	0.282-0.50mm 190-350gsm sided PE coated gray-back or white-back white cardboard paper chosen as the best
Capacity	90-115 pcs/min
Required compressed air	0.6-0.8MPa,0.4m³/min
Power source	Phase 4-Wire 380V 2.5KW (Working power) / 5KW (Total rated power)
Machine size	1100 x 1100 x 1800mm Cup collection table
Machine weight	2200 KG

Our Advantages
MAHICNE FEATURES
The KH-SK108 intelligent paper cup sleeve machine adopts cylindrical cam, gear transmission, and vertical axis structure, thereby reasonable distribution of each functional assembly. The whole machine is lubricated by oil spray lubrication. Electric is controlled by PLC. Suitable for the production of 8-16oz double wall paper cups, it is an ideal equipment to make the thermal insulation or decorative sleeves for milk tea cups, instant noodle cups, coffee cups, corrugated cups and others.
The machine adopts automatic oil spray lubrication to reduce mechanical wear, improve heat dissipation performance, and ensure efficient and long-lasting operation of the transmission. The transmission adopts a vertical axis gear structure, an inverted cylindrical follow-up indexing cam mechanism and gear transmission, which optimizes the internal layout, ensures the synchronous transmission accuracy of the machine, and ensures the stability and quality of the whole machine. The electrical components adopt PLC programmable logic controller, photoelectric tracking and servo, endowing the machine with self-monitoring and intelligent operation.

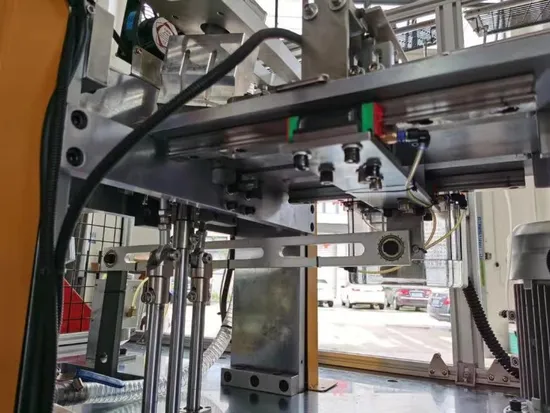

Detailed Photos


FAQ
1: Are you a manufacturer?
Yes,We have been in making paper cup machine for nearly 7 years We have our own workshop,
and nearly 60 workers here.
2:What about the payment term ?
Mostly 30%T/T in advanced,the rest need paid before shipping.
3:Where is your factory location?
We Are Location In Feiyun District ,Feiyun Street Ruian City,Zhejiang Province,China

4:How's your after-sale service?
we offers one year warrantyr and we can send to you freely if there is any spare part broken because of our reason.
Our engineers can also go to your factory to install machines and train your workers.
5:What about the Delivery time?
Within 40-50 days after receipt of advance payment and cup sample

---
