Box Wrapper Mobile Phone Box Maker Rigid Box Making Machine

Product Description

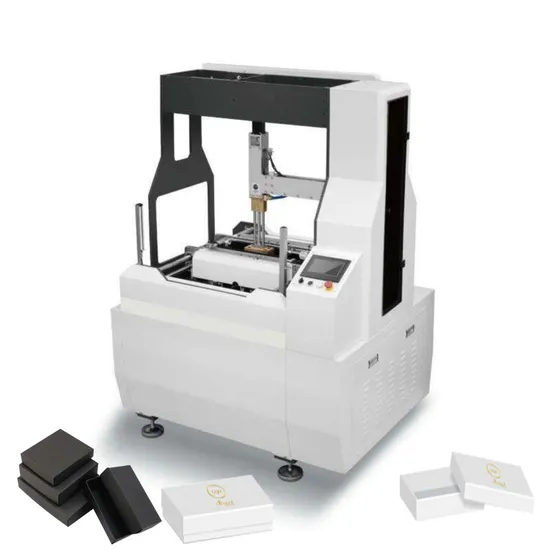

B420 Box wrapper with auto setting
Performance Introduction
The automatic mold adjustment molding machine is the latest box packaging equipment developed by our company on the basis of the original equipment. The biggest advantage of this machine is that the outer dimensions (length, width, and height, etc.) of the top cover can be input on the touch screen. The action of the corresponding parts such as, cornering, etc. is automatically in place, and has the functions of memory and storage, which saves the time for mold change.
Structural features The main drive adopts dual servo drives, stable operation, flexible and adjustable forming and folding, suitable for carton and paper thickness of various structural sizes, and high operational stability. The depth of the inner folding paper is widely applicable, flexible and adjustable without rebound, and the folding range is between 10-90mm. The four sides of the bubble-pressing position adopt the up and down displacement, the previous bubble-pressing and then sinking the bubble-pressing left and right. The structure of the cornering part is connected to the pressure foam board and adjusted before leaving the factory, and boxes of different sizes do not need to be adjusted separately during production. The multi-function box-making mode can complete the diagonal, center and left-right corners. 6.The ejection device adopts the cylinder synchronous operation mode, which runs smoothly, and the ejection structure is simple by adopting automatic air exchange servo for ejecting the box.
Main technical parameter
Model B420
Box size max 450mm×400mm×120mm
Box size min 60mm×80mm×10mm
Turn in size 10mm-90mm
Turn in box height 90mm
Speed 0-25P/min
Voltage 220V 50Hz
Power 2kw
Air consumption 10L/min 0.8MPa
Weight 750kg
Machine dimension 1500mm×1200mm×2000mm
Advantage&Services
1. Has several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2. Machines with good quality in one year, life-long maintenance.
3. Have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4. Has several senior, continuous innovation and reform, in order to ensure the quality of mechanical stability.
5. Undertake various non-standard machinery, solve the customers' requirements.
What Kind Of Payment Terms Our Company Accept?
We accept Payment term: T/T, L/C At Sight
Packing Information
All machine Pack in Export stander Wooden Box
Why Choose Our Perfect Advance model Book Covering Machine?
ZHEJIANG XINWEI MACHINERY Co., Ltd. is an integrated high-tech enterprise setting research and development, manufacturing, sales, service as one. From the beginning, we always adhere to the management concept of "technological innovation and development, quality of survival"and set establishing an international high standard of packaging machine manufacturing system as the mission. Always listening to the clients" voice, meeting customer expectations-oriented, and in-depth researching and development, we have won numbers of national invention patents and the latest national standards as "the national high-tech enterprise", and passed
The ISO9001: 2008 and CE certificate. The face of ever-changing, increasingly fierce competition in the domestic and overseas-market, We insist that the customer service concept, the idea of full joint development. And always played a role in the command center. For the purpose of the spirit: Saving space and labor for customers and Improving economic efficiency.
Contact Information:
ZHEJAING XINWEI MACHINERY CO.,LTD.
ADD: No.555 Jinxiang Road,Feiyun Economic Development Zone, Ruian City Zhejiang Province China.
TEL:+86-13587585228

---
