High Performance Maize Straw Silage Chopping Machine Bamboo Fodder Chopper Machine

Product Description

High Performance Maize Straw Silage Chopping Machine Bamboo Fodder Chopper Machine
Product Description

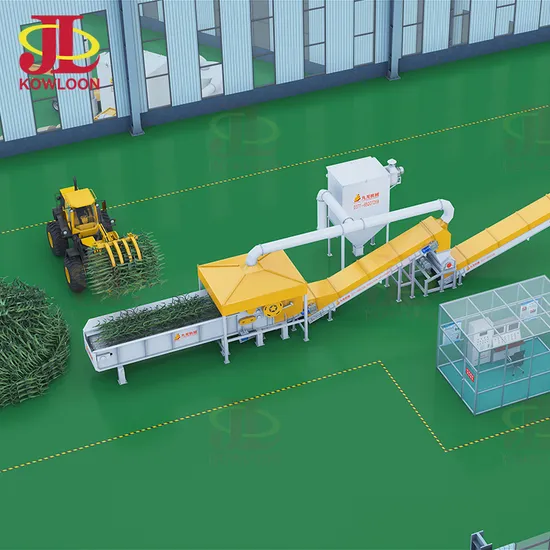

Silage Processing Equipment Silage Production Line
The silage processing equipment produced by kowloon machinery includes silage chopper machine and grass silage grinder. The silage processing line can produce up to 40 tons per hour. If you want to know more, welcome to communicate with us online!

Silage Grass Chopper Machine
Model	SWC1000 (stationary)	SWC1300 (stationary)	SWC1600 (stationary)
Infeed size	1000*400 mm	1300*400 mm	1600*400 mm
Main Motor	110 kw (electric)	160 kw (electric)	200 kw (electric)
Infeed roller motors	5.5*2 kw	7.5*2 kw	11*2 kw
Infeed conveyor	Steel chain conveyor, length 4m, width 1m	Steel chain conveyor, length 4m, width 1.2m	Steel chain conveyor, length 6m, width 1.5m
Blade/Hammer	Made of H13
Rotor diameter	φ850mm	φ850mm	φ1000mm
Discharging motor power	1.5 kw	2.2 kw	3 kw
Rotary speed of rotor	510 rpm	510 rpm	365 rpm
Working capacity	10-40tons per hour (according to material)
Weight	9000kg	12000kg	16000kg
Dimension	6000*2150*1750mm	6000*2350*1750mm	6000*2950*1950mm

Model	SWC1000 (trailed)	SWC1300 (trailed)	SWC1600 (trailed)
Infeed size	1000*400 mm	1300*400 mm	1600*400 mm
Main Motor	220HP (diesel engine)	380HP (diesel engine)	580HP (diesel engine)
Infeed roller motors	5.5*2 kw	7.5*2 kw	11*2 kw
Infeed conveyor	Length 4m, width 1m	Length 4m, width 1.2m	Length 6m, width 1.5m
Discharge conveyor	6meter length, hydraulic control foldable belt conveyor
Rotor diameter	φ850mm	φ850mm	φ1000mm
Blade/Hammer	Made of H13
Foldable discharging conveyor motor	1.5 kw	2.2 kw	3 kw
Rotary speed of rotor	510 rpm	510 rpm	365 rpm
Working capacity	10-40 tons per hour (according to material)
Weight	9000kg	12000kg	16000kg
Dimension	6000*2150*1750mm	6000*2350*1750mm	6000*2950*1950mm

Silage Forage Grinder Grass Hay Crusher Machine
Model	JL-1200
Dimensions	1595*1450*1881mm
Crushing chamber size	1200*600mm
Spindle diameter	85mm
Motor power	45KW
Speed	2000 rpm
Blade size	50*80*3mm
Number of blades	72 pieces
Blade material	High manganese steel
ATotal machine weight	about 1.5t

Details Show

Silage Chopper Machine for Animal Feeding Kowloon machinery SWC series biomass waste and wood chipper shredder is sort of multi-functional biomass waste reduction equipment, the rotor designed to be modular style, equipped with different rotors to realize chipping, grinding, chopping functions, widely used to downsize various of materials like wood tree log, nailed wooden waste, green or yellow corn silage, tree bark…etc.
Features
1. Modular rotors, one machine provide three kinds of rotors for options: hammer rotor, chipping rotor, fine grinding rotor, the blades/hammers are replaceable. 2. Cover of crushing chamber could be opened by hydraulic, ease for maintenance and changing blades. 3. Thick strengthen screen, sieve size is customizable for different requirements to get different size output 4. Forced feeding system is our proven technique; ensure continuously feeding and large working capacity, even big roll of tree logs or high wooden case is no problem to infeed for this monster. 5. High Capacity with larger feeding port than traditional type, which could process big log in arrange of 450mm to 700mm diameter.

Raw Mterial
Fine chopping animal feed like tree branch, elephant grass, corn silage, wheat straw, paddy stalk, sugarcane, palm leaf..etc.
Installed Projects
Packaging and Shipping
Company Profile
Company Introduction
Kowloon Machinery located in industrial hub of Zhengzhou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously.
We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry!
Certificate
Customer Cooperation
Zhengzhou Kowloon Machinery has always won the trust and recognition of many users with its excellent quality and excellent after-sales service. The company has CE, ISO, SGS, CMIC and multiple certification certificates and invention patents. New and old friends are welcome to visit our factory and Trial machine test.
FAQ
1. Are You Trading Company or Factory?
Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2. What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary.
3. How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4. What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5. Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.

---
