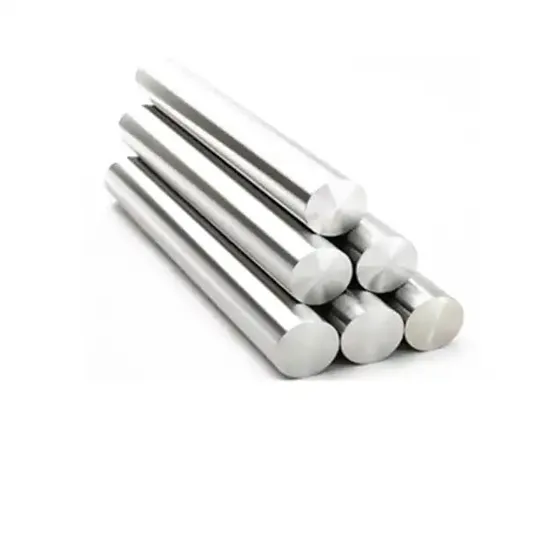

Linear Bearing Axis Rail Rod Shaft Hard and Flexible Bars

US$1.67
1-9 Pieces
US$1.61
10-19 Pieces
US$1.55
20+ Pieces

Basic Info.

Model NO.
Diameter 6/8/10/12/13/14/15/16/17/18/20/22...120
Journal Surface Roughness
Ra0.1m~Ra0.35m
Material
Beaing, Carbon Steel, Stainless, Bearing Steel
Straightness
0.1mm
Product Length
100mm-8000mm
Hardening Layber Depth
H0.8mm~3mm
Hard Chrome Plateing Thickness
0.015mm~0.02mm
MOQ
1
Customized
Drawing and Length
Load
Drive Shaft
Axis Shape
Straight Shaft
Shaft Shape
Optic Axis
Appearance Shape
Round
Stiffness & Flexibility
Stiffness Shaft/Flexible Shaft
Transport Package
Paper Box /Wooden Box
Specification
Diameter 6~120mm
Trademark
LSWCBE
Origin
China
Production Capacity
1000000

Packaging & Delivery

Package Size
100.00cm * 5.00cm * 5.00cm
Package Gross Weight
3.000kg

Product Description


Product Description
Product name: Linear optical axis(hard axis,soft axis,high-precision axis)
Material: 45# steel,Bearing steel,Stainless Steel,42 CrMo
Straightness: 0.1mm
Optical axis accuracy: g6/g8/h7 tolerance -0~5 wires
Optical shaft hardness: hard shaft 58~60 degrees,soft shaft 18~22 degrees,tempering shaft 25~32 degrees
Product length: 200mm~8000mm
Optical axis diameter: 5mm~20mm,22mm,25mm,28mm,30mm,32mm,35mm,40mm,50mm,55mm,60mm,70mm,75mm,80mm,90mm,100mm,110mm,120mm
Hardening layer depth: H0.8mm~3mm
Surface roughness: ra0.1m~ra0.35m
Hard chrome plating thickness: 0.015mm~0.02mm
Shaft Rail Series
hard shaft 3 4 5 6 8 10 12 13 14 15 16 17 18 19 20 22 25 28 30 32 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120
flexible shaft 6 8 10 12 14 15 16 17 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120
bearing shaft 12 16 20 25 30 35 40 50 60Quenching and tempering shaft16 20 25 30 35 40 50 55 60 80
hollow shaft 12*6 16*10 20*7 20*12 25*11 25*15 25*17 25*19 30*16 30*20 35*25 40*26 40*28 40*30 50*35 50*40 60*50
SBR SBR10 12 16 20 25 30 35 40 50
TBR TBR16 20 25 30
SCS...UU bearing block SCS UU8/10/12/13/16/20/25/30/35/40/50/60
SCS...LUU length bearing SCS..LUU8/10/12/13/16/20/25/3035/40/50/60
SCE..UU SCE..UU8/10/12/16/20/25/30/40/50/60
SCE..LUU SCE..LUU8/10/12/16/20/25/30/40/50
SCV..UU SCV..UU8/10/12/13/16/20/25/30/35/40/60
SC..AJUU SC..AJUU8/10/12/13/16/20/25/30/35/40/50
SC..AJLUU SC..AJLUU8/10/12/13/16/20/25/30/35/40/50
SBR..UU SBR..UU10/12/13/16/20/25/30/35/40/50
SBR..LUU SBR..LUU10/12/13/16/20/25/30/35/40/50
TBR..UU TBR..UU16/20/25/30
TBR..LUU TBR..LUU16/20/25/30
SK end support SK8/10/12/13/16/20/25/30/35/40/50/60
SHF endsupport SHF8/10/12/13/16/20/25/30/35/40/50/60
LM..UU LM..UU6/8/10/12/13/16/20/25/30/35/40/50/60
LMF..UU LMF..UU6/8/10/12/13/16/20/25/30/35/40/50/60/80
LM..UUOP LM..UUOP6/8/10/12/13/16/20/25/30/35/40/50/60
LME..UU LME..UU6/8/10/12/13/16/20/25/30/35/40/50/60/80
LMK..UU LMK..UU6/8/10/12/13/16/20/25/30/35/40/50/60/80
LMH..UU LMH..UU6/8/10/12/13/16/20/25/30/35/40/50/60/80
LM..LUU LM..LUU6/8/10/12/13/16/20/25/30/35/40/50/60
LMF..LUU LMF..LUU6/8/10/12/13/16/20/25/30/35/40/50/60/80
LM..LUUOP LM..LUUOP6/8/10/12/13/16/20/25/30/35/40/50/60
LME..LUU LME..LUU6/8/10/12/13/16/20/25/30/35/40/50/60/80
LMK..LUU LMK..LUU6/8/10/12/13/16/20/25/30/35/40/50/60/80
LMH..LUU LMH..LUU6/8/10/12/13/16/20/25/30/35/40/50/60
