Corrugated Carton Box Making Machine Paper Production Line Reel Paper Unwinder Hydraulic Shaftless Mill Roll Stand Machine

Product Description

Hydraulic Shaftless Paper Mill Roll Stand For Single Facer Corrugated Cardboard Production Line
Corrugated Board Production Line Hydraulic Shaftless Paper Board Mill Roll Stand
Product Description

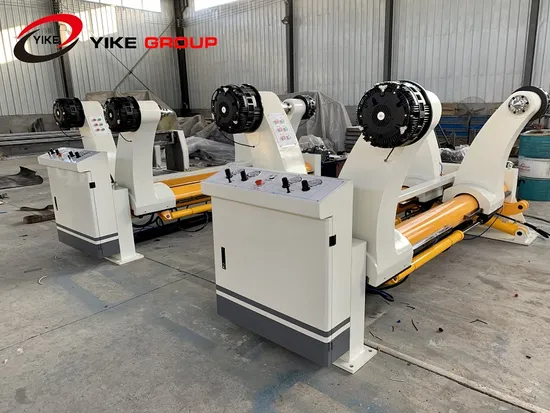

Hydraulic shaftless mill roll stand

Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck, multi-point brake, hydraulic drive lifting, panning left and right on the middle.

Hydraulic mill roll stand Specification
The symmetrical structure can install two rolls of paper at the same time and continually change paper, paper roller clamp, lift-lower, loosen, movement, contraposition, translation, etc.
Equipment was made of HT200-wide casting.
Maximum loading of one side arm 1500-2000kg
Each stand with two set tracks and a trolley for carrying paper.
Pneumatic braking
Electrical components are controlled centralized(domestic brank)
One set main motor power of hydraulic mill roll stand is 2kw, each arm power 1.5*4kw
YIKE GROUP Hydraulic mill roll stand Advantage
Hydraulic mill roll stand characteristic
Professional manufacturer
Economic cost
Durable working
Fast delivery
Good after service
I, Structural features:
1.Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
2.Brake adjustable adopts multipoint braking system.
3.Each paper rack is equipped with two paper carts that can be served simultaneously from both sides.
II,Technical parameter
1,Paper clip range maximum : 1800mm minimum : 1000mm
2,Folder diameter maximum : 1500mm minimum : 350mm
3,Main shaft diameter of paper holder:¢240mm
4,Gas source work pressure(Mpa):0.4---0.8Mpa
III,Hydraulic system parameters
1,Work pressure(Mpa):16---18Mpa
2,Lifting hydraulic cylinder:¢100×440mm
3,Clamping hydraulic cylinder:¢63×1300m
4,Hydraulic station motor power:3KW --380V -- 50Hz
Solenoid valve voltage:220V 50 Hz

---
