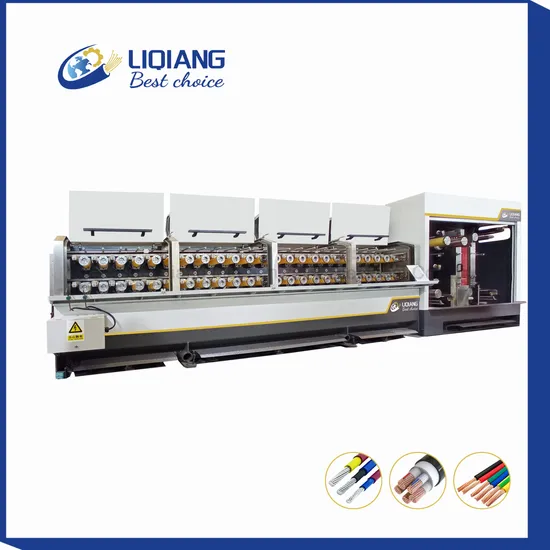

Liqiang 0.1-0.4mm Multi 16 Wire High Speed Automatic Cable Wire Making Machine

Product Description

Liqiang 0.1-0.4mm 16 wires Copper Fine Wire Machine China

Model	25-16DT
Usage	Bare copper wire drawing
Quantity of drawing dies	25
Inlet diameter	16*1.4-1.6mm
Outlet diameter	16*0.1mm-0.4mm
Drawing rings	100mm with 8 grooves
Drawing dies	28*12mm
Max. Drawing speed	1800m/min

Using motor/ main motor	180kw
Correction system	Automatically control
Annealing method	DC three section annealing
Voltage	380V or Customized
Brake	Pneumatic brake
Brand	Liqiang or OEM
Colour	As customer's need
Operation direction	Right hand machine

LIQIANG-15/16DT 16-wire Fine Wire Drawing Machine with AnnealerThe wire drawing machine is used for drawing and annealing copper wire at the same time.It has the following features:1) High efficiency,saving energy,space and labor force.2) Multi-wire tandem drawing machine without wire deflections, drawing direction horizontal3) Tension independent control,wire is not easily gets break.4) Two options available for take up,output wire can be spooled on the same bobbin or four bobbins separately.
Jiangsu Liqiang Mechanical & Electrical Co.,Ltd, is a professional wire and cable production manufacture with development design, whole plant planning and technical advice ,manufacture, installation, commissioning and after-sales service in one. Our main products are wire drawing machine, annealing machine, wire bunching machine and other related equipment for bare copper, copper alloy and stainless steel wire, etc.
We believe that perfect high-quality products only come from zero defect production process. Listrong has adopted the advanced production equipment and technology , scientific & standardized management system and strict testing standards to ensure international advanced level on quality ,structure, performance and appearance. A post-sales service team with versatility and high-efficiency is standing by to provide a full range of services and ensure that the products of your choice are in good working condition all the time. Our products,well trusted and supported ,have been sold throughout China and Southeast Asia, the Middle East , South Africa and other regions.
Liqiang persisted in the principle of " quality wins market, integrity makes for brand" .We make each component with all our mind and energy and to meet multiple requirements all from clients' interests. We hope to create maximum value for the community as well as for clients.
Q: Are you a manufacturer or trade company?A: We are a real wire drawing machine manufacturer, we can support online and offline factory inspoestion anytime.Q:Where is your factory located?A: Our factory is located in Dongtai City, Jiangsu, China. It is not so far from Shanghai airport and Nanjing airport.
If you want to visit our factory, we may pick up you from airport. Q: How many years are your company engaged in the wire drawing machine?A: More than 20 years. We have our own technology develop department and testing department.Q: Can you send your engineer to my country for machine installation, worker training?A: Yes, sure. Our engineers have been to more than 60 countries before. They are very experienced.Q: What's the guarantee time for your machines?A: 12 months since the date of dispatching from our factory.Q: Can you export and supply the customs clearance documents we need?A: We have much experience for exporting. We will arrange all the customs clearances in advance for you.If you are interested in our machines,
please feel free to contact us now,
We will provide you professional solution with reasonable pric

---
