Hot Sales Combination Lathe Jyp290vf Drilling Milling Lathe Machine

Product Description

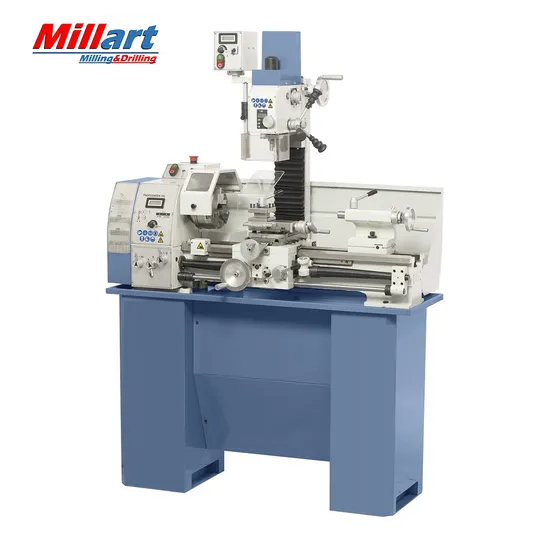

Hot Sales Combination Lathe JYP290VF Drilling Milling Lathe Machine
Feature:
Frequency inverter
38mm spindle bore
V-way bed is hardened and precision ground
Independent leadscrew and feedshaft.
Power cross feed function.
Automatic feed and threading are fully interlocked
MT5 spindle hole gets greater capacity with Φ 160 mm three-jaw chuck
T-slotted cross slide
Top design of gearbox gets more function
Tailstock may be offset for turning tapers
Geared mill head gets more torque.
Mill head can be tilted ± 90° .
Toleranc e test certificate, test flow chart included.
Technical parameter:

Lathe	JYP290VF
Distance between centers	700 mm
Swing over bed	280 mm
Swing over cross slide	165 mm
Width of bed	180 mm
Taper of spindle bore	MT5
Spindle bore	38 mm
Number of spindle speeds	Variable
Range of spindle speeds	50-2000 rpm
Range of longitudinal feeds	0.07-0.20 mm/r
Range of inch threads	8-56 T.P.I
Range of metric threads	0.4-3.5 mm
Top slide travel	70 mm
Cross slide travel	140 mm
Tailstock quill travel	70 mm
Taper of tailstock quill	MT3
Motor	1.1 kw
Mill & drill
Taper of spindle bore	MT2
Spindle stroke	50 mm
Spindle speed	50-2250 rpm
Max. distance spindle to table	375 mm
Max. distance spindle to column	185 mm
Motor	600W
Packing size	1400x780x1070 mm
Net weight	230 kg

Standard accessories:

3-jaw chuck DK11-125 mm (160mm chuck is optional)	Digital spindle stroke indication
Flange 125 mm	Digital speed indication
Drill chuck 1 - 13 mm / B 16	Drawbar M 10
Drill chuck arbor MT 2 / B 16	Chuck guard
Dead center	Leadscrew cover
Change gears	Tools
4-way tool post holder	Splash guard
Cross slide with upper support

---
